306-011-520-112

$7.97

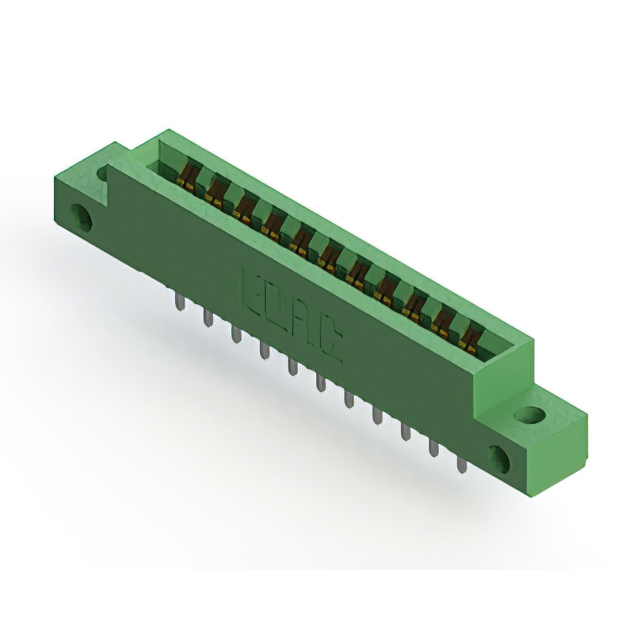

Description：CONN EDGE DUAL FMALE 22POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:60cbc9fa7072 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-011-520-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 22POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-011-520-112

Description：CONN EDGE DUAL FMALE 22POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：11
Number of Positions：22
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-011-520-112

306-011-520-112

Edgeboard Connectors Overview

The EDAC 306-011-520-112 is a standard card edge connector from the 306 series, designed for panel mount applications. It features an 11-position configuration with a 3.96 mm pitch and supports a maximum board thickness of 1.57 mm. The connector utilizes copper alloy contacts with gold plating to ensure reliable signal transmission, rated for 5 A current. Constructed with thermoplastic insulation, it offers high insulation resistance of 5 GOhms and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual female contact design for secure card edge mating
Flush mount flange feature for stable panel installation
Gold-plated copper alloy contacts for corrosion resistance
Thermoplastic housing providing robust electrical insulation

Edgeboard Connectors Applications

Industrial control panels requiring vertical interconnects
Electronic modules utilizing 1.57 mm thick circuit boards
Panel-mounted systems needing 11-channel signal routing

Edgeboard Connectors Procurement Notes

Verify that the specific order matches the 306 series designation and 11-position count. Confirm the requirement for flush mount flanges aligns with the mechanical design. Ensure the operating environment stays within the specified -40°C to +105°C range. Check for any regional distribution restrictions or availability constraints before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a 3.96 mm pitch is required for panel-mount card edge connections. Choose this model if the application demands dual female contacts with gold plating for durability. Consider this part for systems using 1.57 mm thick PCBs where vertical mounting angles are necessary. Verify that the 5 A current rating meets the electrical load requirements of the target circuit.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge connectors with a 3.96 mm spacing. The series typically includes various position counts and mounting styles. This specific part represents a mid-range option within the family, focusing on single-row configurations suitable for general-purpose electronic assemblies.
