306-011-521-101

Edgeboard Connectors Overview

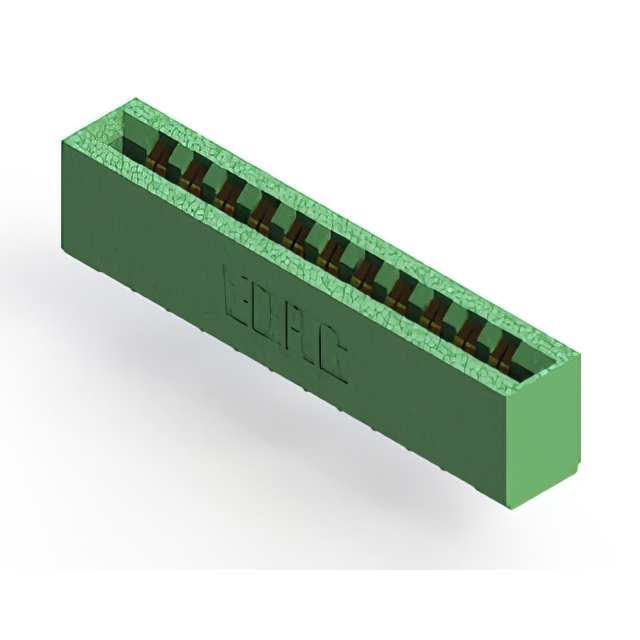

The EDAC Inc. 306-011-521-101 is a dual-edge card edge connector designed for high-reliability interconnect applications. It features 22 positions with female contacts and utilizes gold plating for enhanced conductivity and corrosion resistance. The connector supports a contact spacing of 0.156 inches (3.96mm) and accommodates printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a low-profile insulator body, this component ensures secure mating in space-constrained environments while maintaining robust mechanical stability.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board insertion
• Gold-plated contacts ensure reliable signal transmission
• Low-profile insulator body suitable for compact assemblies

Edgeboard Connectors Applications

• Industrial control systems requiring stable I/O connections
• Medical equipment needing reliable internal board interfaces
• Aerospace and defense electronics demanding high durability

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and insulator material properties. Ensure the target application PCB thickness aligns with the 0.062-inch specification. Confirm that the dual-edge configuration matches the system's mechanical retention requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge interface is required for improved mechanical stability compared to single-edge variants. Consider the 0.156-inch pitch for compatibility with existing board layouts. Evaluate the low-profile form factor against available vertical clearance constraints within the enclosure design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of card edge connectors, which are engineered for general-purpose interconnect solutions. The series offers various position counts and termination options to support diverse computing, storage, and communication network applications across multiple global industries.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 306-series parts with matching 22-position dual-edge configurations. Verify that alternative part numbers maintain identical 0.156-inch spacing and 0.062-inch board thickness acceptance to ensure direct interchangeability without mechanical modification.
