306-011-521-107

Edgeboard Connectors Overview

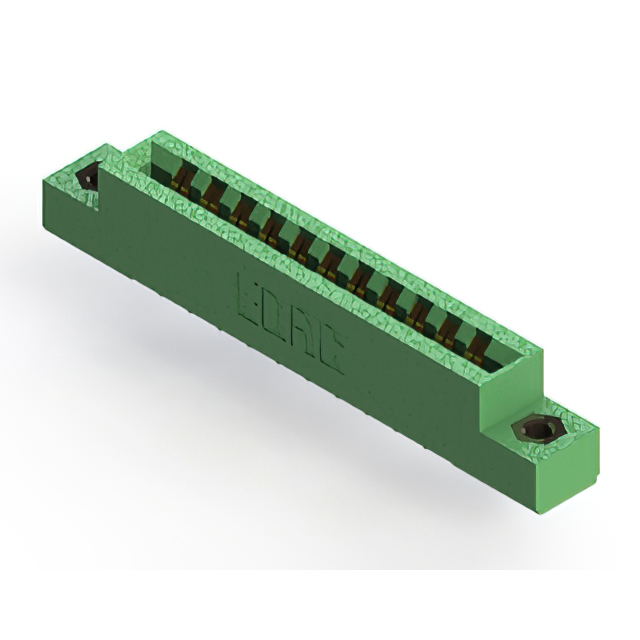

The EDAC Inc. 306-011-521-107 is a standard card edge connector from the 306 series, designed for vertical panel mount applications. It features a single row of 11 positions with a contact spacing of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm. Contacts are made of copper alloy and feature gold plating to ensure reliable signal transmission. The unit has a current rating of 5 A and an insulation resistance of 5 GOhms. It operates within a temperature range of -40°C to +105°C and utilizes a thermoplastic insulator body.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure installation
• Gold-plated copper alloy contacts for durability
• Single centerline row configuration
• Compatible with 1.57 mm nominal PCB thickness

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Panel-mounted electronic modules
• Communication equipment interfaces
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact type and plating specifications, as variations may exist within the 306 series. Confirm that the target PCB thickness aligns with the 1.57 mm nominal requirement to ensure proper mechanical fit. Check RoHS compliance status if environmental regulations apply to the end product. Ensure the selected variant matches the required current rating and operating temperature range for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount card edge connector is required for single-sided PCBs. The 3.96 mm pitch suits applications needing wider spacing between signals. Verify that the 11-position count meets the interface requirements. Consider the thermoplastic housing material for general-purpose insulation needs. Ensure the mounting style accommodates the panel cutout dimensions specified in the mechanical drawings.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting options. The 306-011-521-107 specifically denotes the 11-position variant with vertical orientation. It is distinct from dual-edge or different pitch connectors in the broader catalog. The series is known for low-profile bodies and reliable performance in industrial settings.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 3.96 mm pitch, 11 positions, and vertical panel mount style. Verify compatibility with 1.57 mm PCB thickness. Cross-reference pinout and electrical ratings. No confirmed substitute part numbers are publicly documented for this specific EDAC model.
