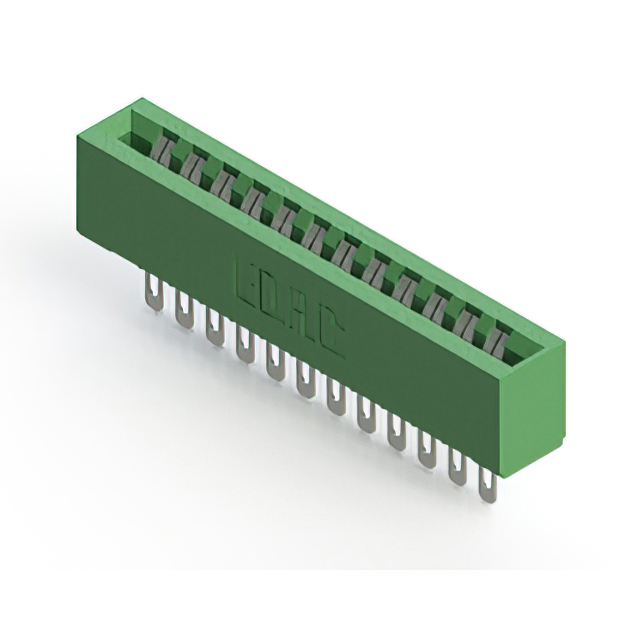

306-012-400-101

$7.16

Description：CONN EDGE DUAL FMALE 24POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:2c50b4d296a4 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-012-400-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 24POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-012-400-101

Description：CONN EDGE DUAL FMALE 24POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：12
Number of Positions：24
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Free Hanging (In-Line)
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-012-400-101

306-012-400-101

Edgeboard Connectors Overview

The EDAC 306-012-400-101 is a standard card edge connector receptacle featuring a single centerline row with twelve positions. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs solder pin termination for secure mounting and includes locking features to ensure stable connection integrity. Constructed with a green thermoplastic polyester insulator body, the contacts are made from copper alloy and finished with tin plating to facilitate reliable electrical performance in vertical panel mount applications.

Edgeboard Connectors Feature Summary

Single centerline row configuration designed for dual-edge card acceptance
Low profile insulator body constructed from thermoplastic polyester
Locking mechanism integrated to maintain secure board retention

Edgeboard Connectors Applications

Vertical panel mount electronic assemblies
Dual-edge card interface systems
Industrial control module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm terminal type, contact plating, and insulator color specifications. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the single-row configuration aligns with the design requirements before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, low-profile card edge solution is required for panel-mounted applications. The 3.96 mm pitch accommodates specific board layouts, while the tin-plated contacts offer cost-effective conductivity. Confirm that the vertical orientation and locking features meet the mechanical stability needs of the assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its robust construction and suitability for general-purpose interconnect applications. The 306 series offers various position counts and termination options, providing flexibility for diverse electronic packaging requirements within industrial and commercial sectors.
