306-012-400-104

Edgeboard Connectors Overview

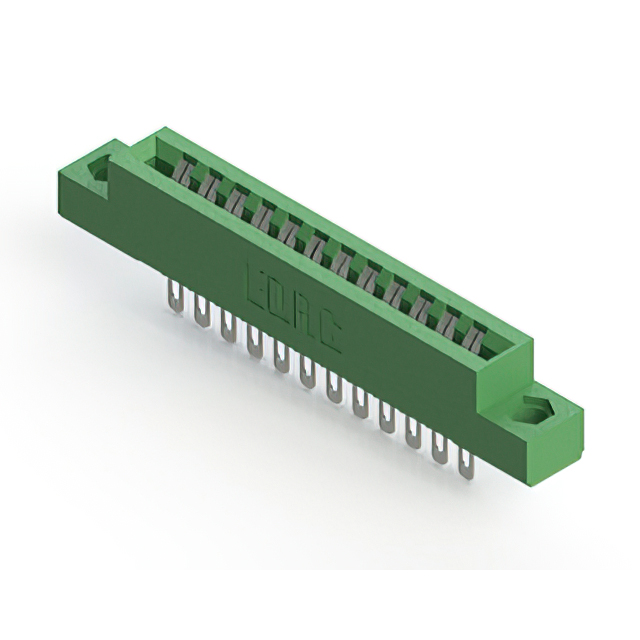

The EDAC Inc. 306-012-400-104 is a standard card edge connector receptacle from the 306 series. It features a dual female configuration with 24 positions arranged in two rows. The component utilizes a 3.96 mm (0.156 inch) contact spacing and is designed to accept printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). It employs gold-plated copper alloy contacts and a thermoplastic polyester insulator body, ensuring reliable signal transmission in panel mount vertical installations.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester insulator body for durability

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies
• Industrial control system interconnects
• Standard card edge interface applications

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the receiving PCB meets the specified 1.57 mm thickness tolerance for proper mechanical engagement. Cross-reference the 306 series datasheet for detailed mounting dimensions and electrical ratings before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 24-position connection is required with a 3.96 mm pitch. Confirm that the application environment supports the material properties of the thermoplastic polyester housing. Verify that the target PCB thickness aligns with the 0.062-inch specification to ensure optimal contact retention and electrical performance during operation.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which provides standard card edge solutions. The series offers various position counts and configurations to suit different board densities. The 306-012-400-104 specifically addresses needs for dual-row connectivity with robust contact plating, fitting within the broader portfolio of high-reliability interconnect components manufactured by EDAC Inc.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers within the 306 series or compatible families. Do not assume interchangeability with connectors from other manufacturers without verifying pinout, pitch, and mechanical envelope specifications.
