306-012-400-107

Edgeboard Connectors Overview

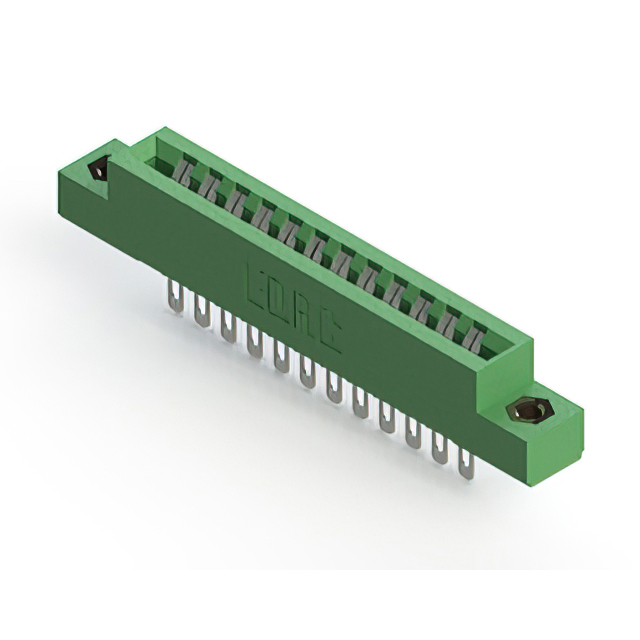

The EDAC Inc. 306-012-400-107 is a standard card edge connector from the 306 series, designed as a header with 12 positions arranged in a single row. It features a contact spacing of 3.96 mm (0.156 inches) and accommodates printed circuit boards with a nominal thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts for reliable signal transmission and is housed in a thermoplastic insulator body. Rated for 5 A current, it supports panel mount installation at a vertical angle, ensuring secure connection for edge-board applications.

Edgeboard Connectors Feature Summary

• Accepts printed circuit boards with a nominal thickness of 1.57 mm
• Features a low-profile insulator body for compact assembly
• Utilizes gold-plated copper alloy contacts for durability

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring vertical interconnection
• Single-row edge-board connections in industrial equipment
• Standard card edge interface systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm pin configuration and plating details against the official datasheet. Ensure the target application requires a single-row header compatible with 1.57 mm board thickness. Confirm that the 3.96 mm pitch aligns with the design specifications before procurement. Cross-reference the manufacturer part number with authorized distributors to ensure authenticity and traceability.

Edgeboard Connectors Selection Notes

Select this component when a single-row header with 3.96 mm pitch is required for 1.57 mm thick boards. The 12-position count suits moderate density interconnect needs. Verify that the vertical panel mount style fits the mechanical constraints. Consider the 5 A rating for electrical load requirements. Ensure compatibility with existing PCB edge designs and mating connectors within the system architecture.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic packaging requirements. The 306-012-400-107 variant specifically addresses applications needing a single-row header configuration with robust thermal plastic housing and precise dimensional tolerances for reliable performance.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC datasheet for direct substitute part numbers within the 306 series. Verify that any alternative maintains the 3.96 mm pitch and 1.57 mm board thickness compatibility. Ensure the replacement matches the single-row header configuration and vertical mounting orientation.
