306-012-400-158

Edgeboard Connectors Overview

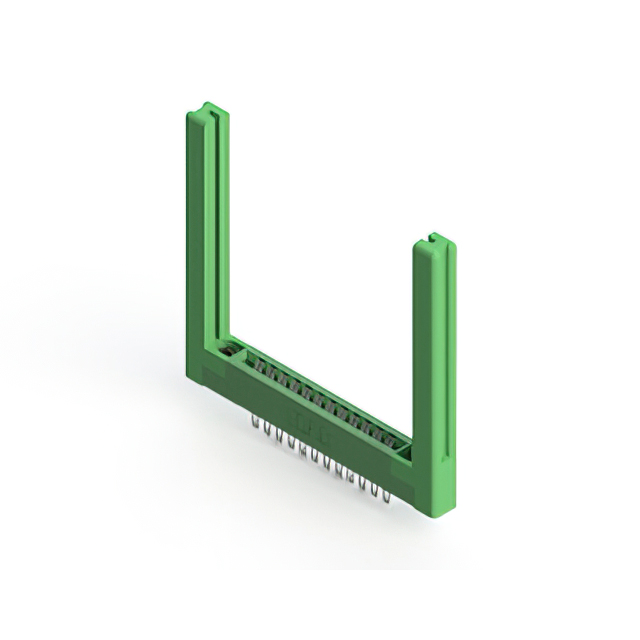

The EDAC Inc. 306-012-400-158 is a dual-edge female card edge connector featuring 24 positions with a 0.156-inch (3.96mm) centerline. Designed for panel and through-hole mounting, it utilizes gold-plated contacts on a copper alloy base within a green thermoplastic polyester housing. The component supports board thicknesses ranging from 0.054 to 0.070 inches and operates reliably between -40°C and 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated spring-type contacts ensure reliable electrical performance
• Thermoplastic polyester insulation provides structural stability
• Panel mount design with flange features for fixed installation

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics circuit boards
• Medical device internal connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm current availability and manufacturing status. Ensure that the required board thickness falls within the specified operational range of 0.054 to 0.070 inches. Confirm that the mounting style aligns with the panel installation requirements of the target application design.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female interface with a 0.156-inch pitch is required. It is suitable for applications needing robust panel mounting capabilities. Consider the operating temperature range and material compatibility with the mating card edge during the design phase to ensure long-term reliability.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and spacing options to accommodate different circuit board densities. The 306 series is widely used in general-purpose electronic assemblies requiring durable and standardized interconnection solutions.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitute part numbers. Ensure any replacement maintains identical pin count, pitch, and mounting characteristics to preserve mechanical fit and electrical continuity.
