306-012-420-101

Edgeboard Connectors Overview

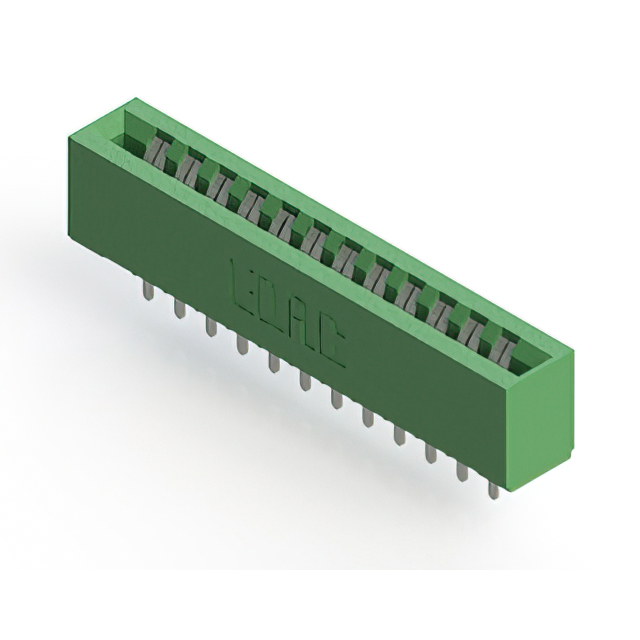

The EDAC Inc. 306-012-420-101 is a standard card edge connector designed for vertical panel mount applications. It features a dual female configuration with 24 positions and a 0.156-inch (3.96 mm) pitch. The connector utilizes gold-plated copper alloy contacts terminated via solder pins, ensuring reliable electrical performance. It supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic material, providing durability for industrial environments.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Vertical panel mount design for space-efficient integration
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic housing for structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Panel-mounted electronic assemblies
• General-purpose circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version for the 306-012-420-101 model to confirm exact dimensional tolerances and mating force requirements. Ensure that the PCB thickness matches the connector's design specifications for proper engagement. Cross-reference the RoHS compliance status with current regulatory standards before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for 24-position interfaces. The 0.156-inch pitch accommodates standard board layouts. Consider the 5 A current rating and operating temperature range to ensure compatibility with the system's thermal and electrical loads. Verify that the dual female termination style aligns with the assembly requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic packaging needs. The 306 series is characterized by its use of thermoplastic housings and gold-plated contacts, providing a balance of cost-effectiveness and reliability for general industrial applications.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts like 306-012-421-101 or 306-030-521-107, provided the position count and pitch match. Verify mechanical dimensions and terminal type compatibility before substitution. Generic equivalents may differ in material composition or plating thickness, affecting long-term reliability.
