306-012-421-101

Edgeboard Connectors Overview

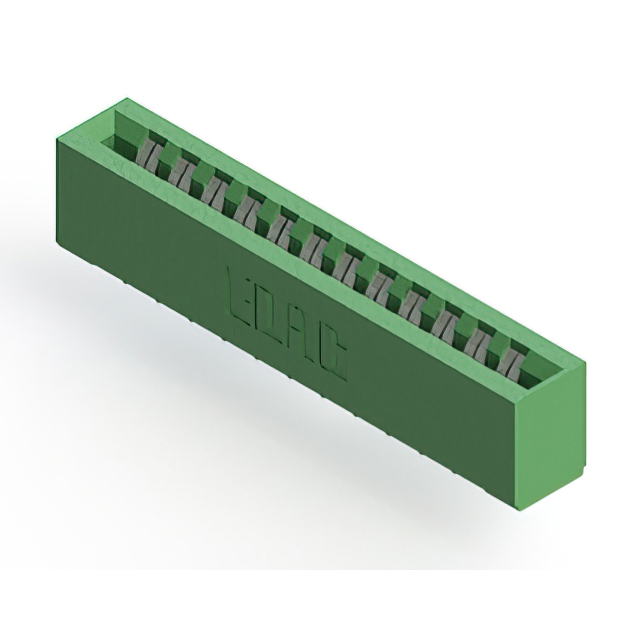

The EDAC Inc. 306-012-421-101 is a standard card edge connector from the 306 series, designed for panel mount installation with a vertical orientation. It features a dual-edge female configuration with 12 positions arranged in two rows, utilizing a 3.96 mm (0.156 inch) pitch. The contacts are gold-plated copper alloy, ensuring reliable conductivity, while the housing is constructed from thermoplastic polyester. This component supports PCB thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for enhanced conductivity
• Thermoplastic polyester housing for structural stability
• Vertical panel mount design for space-efficient integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation panels
• Automotive electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating, housing color, and flange specifications. Ensure that the target application accommodates the required 3.96 mm pitch and 1.57 mm board thickness. Confirm RoHS compliance status and environmental ratings prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this connector when a vertical, panel-mounted solution with a 3.96 mm pitch is required. The dual-edge female design suits applications needing high durability and reliable signal transmission. Consider the operating temperature range and material compatibility with the mating card edge during system design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles, providing flexibility for diverse electronic assembly needs. The 306-012-421-101 specifically addresses requirements for moderate density connections with robust mechanical retention.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 306 series specifications, including 12 positions, dual-edge female type, 3.96 mm pitch, and vertical panel mount style. Verify pinout compatibility and mechanical dimensions before substitution.
