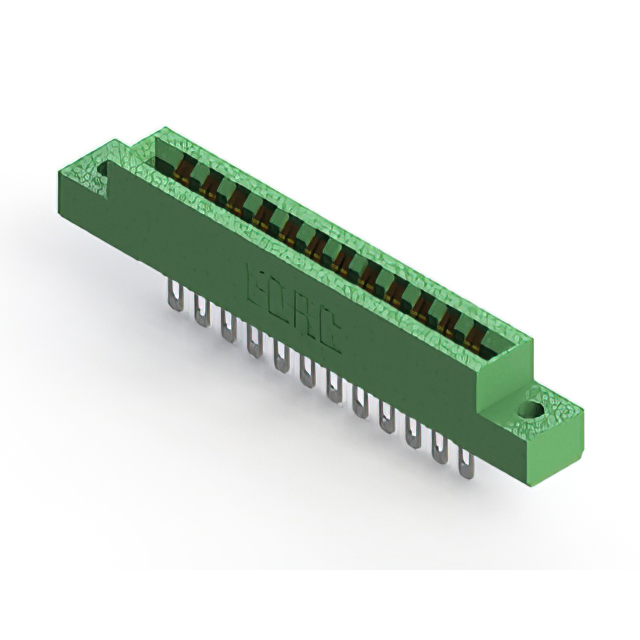

306-012-500-102

$9.52

Description：CONN EDGE DUAL FMALE 24POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:8a0d1682355a Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-012-500-102 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 24POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-012-500-102

Description：CONN EDGE DUAL FMALE 24POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：12
Number of Positions：24
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-012-500-102

306-012-500-102

Edgeboard Connectors Overview

The EDAC Inc. 306-012-500-102 is a standard card edge connector from the 306 series, designed for board-to-board applications. It features 12 positions with a 3.96 mm (0.156 inch) pitch and supports PCBs up to 1.57 mm thick. The connector utilizes copper alloy contacts with gold plating and operates at a current rating of 5 A. It employs a through-hole mounting style with wire hole tails and offers an insulation resistance of 5 Gohms.

Edgeboard Connectors Feature Summary

Dual female contact configuration for secure card edge insertion
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic housing provides structural stability and electrical isolation

Edgeboard Connectors Applications

Industrial control panel interconnections
Telecommunications equipment backplanes
Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official EDAC documentation. Confirm that the received items match the specified 12-position count and 3.96 mm pitch. Ensure compliance with RoHS directives as indicated in the product specifications. Check for any specific handling requirements related to the gold-plated contacts during storage and assembly.

Edgeboard Connectors Selection Notes

Select this model when a 12-position connection with a 3.96 mm pitch is required. It is suitable for applications needing a 5 A current rating and compatibility with 1.57 mm thick PCBs. Consider the through-hole mounting style and vertical orientation for panel installation needs. Verify that the dual female contact type aligns with the mating card edge design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series is characterized by its robust thermoplastic construction and versatile mounting options. The 306-012-500-102 variant specifically addresses the need for mid-range position counts with high reliability standards in electronic assemblies.
