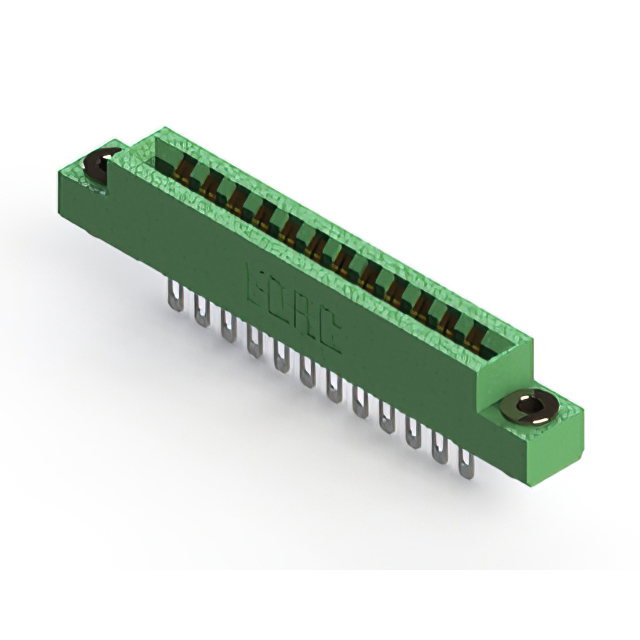

306-012-500-103

$8.98

Description：CONN EDGE DUAL FMALE 24POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:0f5691bd8400 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-012-500-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 24POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-012-500-103

Description：CONN EDGE DUAL FMALE 24POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：12
Number of Positions：24
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-012-500-103

306-012-500-103

Edgeboard Connectors Overview

The EDAC 306-012-500-103 is a standard card edge connector from the 306 series, designed for vertical panel mounting. It features a dual female configuration with 24 positions arranged in two rows. The connector utilizes a 0.156-inch (3.96 mm) centerline pitch and supports a maximum operating temperature of +105°C and a minimum of -40°C. Electrical specifications include a current rating of 5 amps and an insulation resistance of 5 GOhms. The housing is constructed from green thermoplastic material.

Edgeboard Connectors Feature Summary

Dual female contact configuration for secure board insertion
Vertical panel mount installation style for structural stability
Gold plating on mating areas to ensure reliable signal transmission

Edgeboard Connectors Applications

Industrial control systems requiring robust card edge connections
Communication equipment interface modules
Consumer electronics internal board-to-board interconnects

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and housing color variations. Ensure that the selected variant matches the required PCB thickness tolerance and panel cutout dimensions for proper mechanical fit. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability status and lead times before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female card edge connector is required for vertical panel mounting applications. Consider the 0.156-inch pitch and 24-position count to match the target printed circuit board design. Evaluate the thermoplastic housing material and gold-plated contacts for suitability in environments demanding moderate temperature resistance and reliable electrical performance up to 5 amps.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles to accommodate diverse electronic assembly needs. The 306 series is characterized by its use of thermoplastic housings and standardized spacing, providing a versatile solution for connecting edge-card modules in industrial and commercial electronic devices.
