306-012-500-108

Edgeboard Connectors Overview

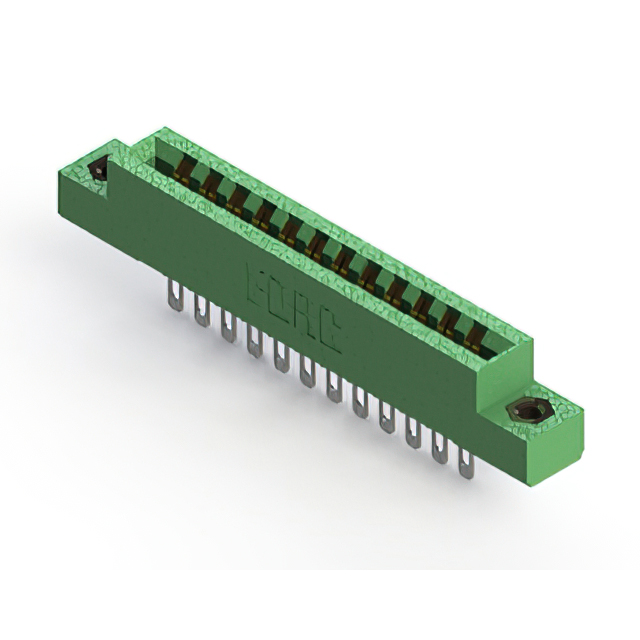

The EDAC Inc. model 306-012-500-108 is a standard card edge connector receptacle from the 306 series. It features 24 positions with a 3.96 mm pitch and supports dual-edge board insertion. The connector utilizes gold-plated copper alloy contacts for reliable signal transmission. Designed for panel mount installation at a vertical angle, it accommodates a PCB thickness of 1.57 mm. The housing is constructed from green thermoplastic polyester, providing durability in industrial environments.

Edgeboard Connectors Feature Summary

• Dual-edge contact configuration ensures secure mating with edgeboard connectors
• Gold-plated copper alloy terminals provide corrosion resistance and stable conductivity
• Thermoplastic polyester insulation offers thermal stability and mechanical strength
• Panel mount design with flange features facilitates robust structural integration

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Automotive electronic module interfaces
• Test and measurement instrument connections

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 24-position configuration and 3.96 mm pitch before procurement. Confirm compatibility with the target PCB thickness of 1.57 mm to ensure proper mechanical fit. Check for any regional distribution restrictions or RoHS compliance documentation requirements relevant to your supply chain regulations.

Edgeboard Connectors Selection Notes

Select this component when a high-current capacity and durable panel-mount solution is required for dual-edge card applications. Ensure the operating environment temperature range aligns with the material specifications. Consider the vertical mounting orientation and available panel space when designing the enclosure layout for optimal assembly access.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which provides various mounting options and termination styles for card edge applications. The series is designed for general-purpose industrial use, offering reliability through standardized dimensions and material choices. It serves as a critical interface component in systems requiring frequent board insertion and removal.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include models like 306-010-421-108 for different position counts. Verify that any replacement maintains the identical 3.96 mm pitch and dual-edge contact geometry to preserve mechanical and electrical compatibility.
