306-012-500-112

Edgeboard Connectors Overview

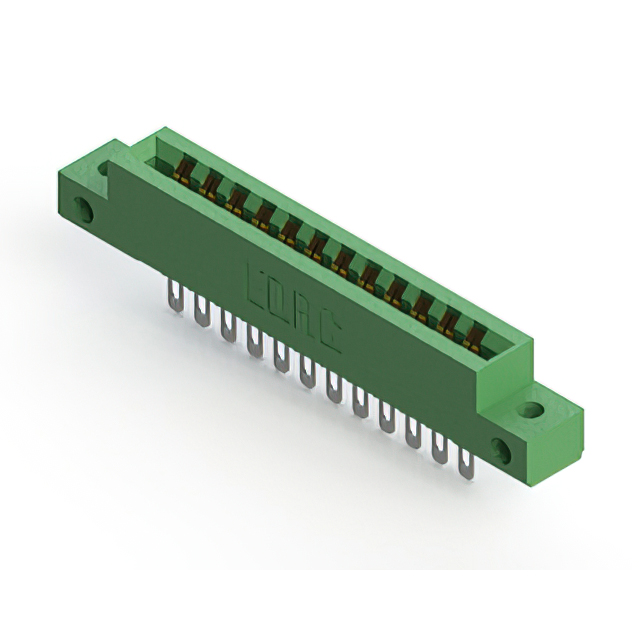

The EDAC Inc. part number 306-012-500-112 is a standard card edge connector from the 306 series, designed for dual-edge board applications. It features 24 positions arranged in a single row with a pitch of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts and a thermoplastic housing. It supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. The unit has an insulation resistance of 5 GOhms and is intended for panel mount installation.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge engagement
• Gold plating on copper alloy contacts ensures reliable conductivity
• Thermoplastic housing provides structural integrity and electrical insulation

Edgeboard Connectors Applications

• Computing and storage systems
• Medical equipment interfaces
• Industrial control modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm pin count, contact material, and mounting style. Ensure compatibility with target PCB thickness and mating card dimensions before procurement. Cross-reference the full part number with official EDAC documentation to avoid substitution errors.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with 24 positions is required. Confirm that the 0.156-inch pitch matches the design specifications. Verify that the thermoplastic housing material meets environmental requirements for the intended operating temperature range.

Edgeboard Connectors Part Context

EDAC Inc., established in 1966, specializes in interconnect solutions for computing, medical, and industrial sectors. The 306 series represents their standard card edge connectors, offering various position counts and mounting options. This part belongs to a widely distributed family of high-quality connectors known for rigorous quality assurance.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult the official EDAC datasheet or authorized distributors for verified equivalent components.
