306-012-500-178

Edgeboard Connectors Overview

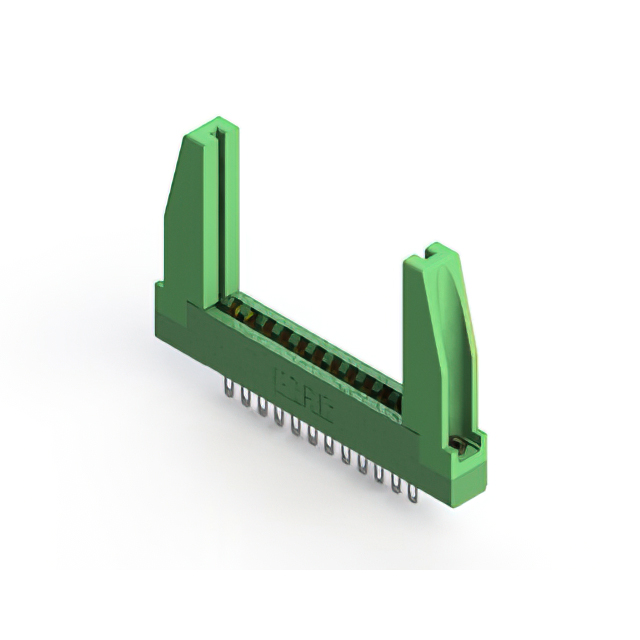

The EDAC Inc. 306-012-500-178 is a standard card edge connector receptacle designed for through-hole mounting. It features a single row with 12 positions and a contact spacing of 3.96 mm (0.156 inches). The component accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Rated for 5 A current, it utilizes gold-plated copper alloy contacts housed in a thermoplastic polyester body. The connector operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single centerline row configuration for standard card edge applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulator body provides structural stability
• Through-hole termination style facilitates secure PCB integration

Edgeboard Connectors Applications

• Digital multimeters
• Programmable Logic Controllers (PLCs)
• Radar processing systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact pin count, plating thickness, and board thickness compatibility. Ensure the selected variant matches the required panel mount orientation and thermal rating for the intended operational environment before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge interface with 3.96 mm pitch is required. Confirm that the target PCB thickness aligns with the 1.57 mm specification. Evaluate the 5 A current rating against system power requirements and verify that the through-hole mounting style fits the assembly constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various design options to tailor interconnect requirements. The 306 series typically includes receptacles with single or double rows, supporting different position counts and mounting styles for diverse electronic applications.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts from the same EDAC 306 family, such as the 306-015-520-178, which shares similar electrical characteristics but differs in position count. Verify mechanical dimensions and pinout configurations before substituting.
