306-012-520-101

Edgeboard Connectors Overview

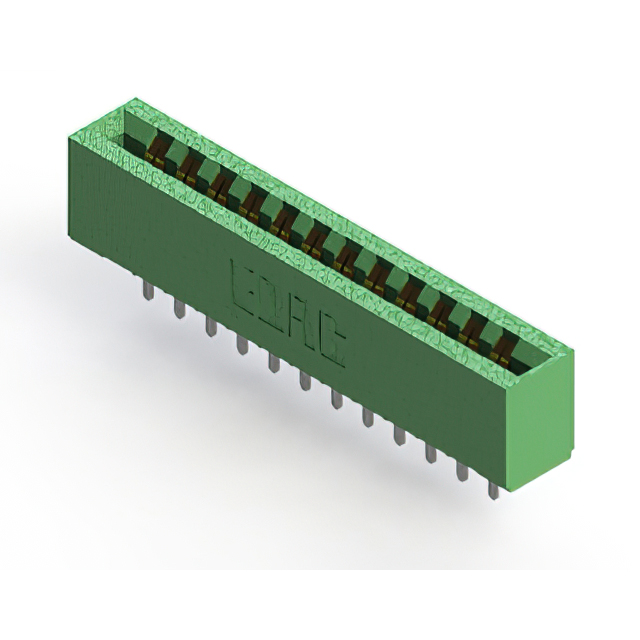

The EDAC Inc. 306-012-520-101 is a dual female card edge connector featuring 24 positions with a 0.156-inch (3.96 mm) pitch. It utilizes cantilever contacts made of copper alloy with gold plating for reliable signal transmission. The unit operates within a temperature range of -40°C to 105°C and employs polyester thermoplastic insulation. Designed for panel installation, it supports a board thickness of 1.57 mm and provides an insulation resistance of 5 Gohms.

Edgeboard Connectors Feature Summary

• Dual female configuration with cantilever contact design for secure card engagement
• Gold-plated copper alloy terminals ensure durable electrical connectivity
• Polyester thermoplastic insulation material supports high operating temperatures

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard card edge form factors
• Consumer electronics assemblies needing reliable panel-mounted connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, pitch, and termination style. Ensure compatibility with target PCB thickness and mounting requirements before procurement. Cross-reference manufacturer part numbers to avoid substitution errors in critical assemblies.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female interface with 0.156-inch pitch is required. Confirm that the cantilever contact type aligns with the mating card edge specifications. Verify that the thermal rating meets the operational environment demands of the final application.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which focuses on standard card edge solutions. The series offers various position counts and configurations for diverse electronic applications. EDAC designs these components to meet rigorous industry standards for reliability and performance in demanding environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitute part numbers. Do not assume generic equivalents match the specific cantilever geometry or pitch requirements without direct datasheet confirmation.
