306-012-520-103

Edgeboard Connectors Overview

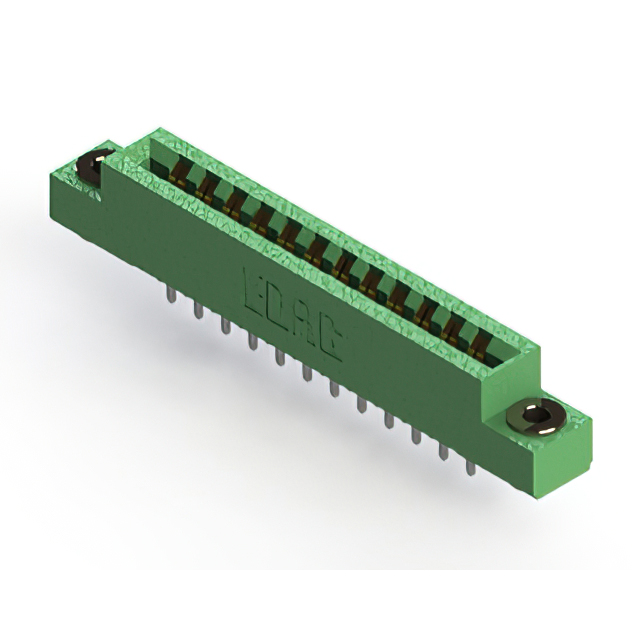

The EDAC Inc. 306-012-520-103 is a standard card edge connector from the 306 series, designed for panel mount applications. It features a single row of 12 positions with a 3.96 mm (0.156 inch) contact spacing. The connector utilizes gold-plated copper alloy contacts and a thermoplastic insulator body. It accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts PCBs with a nominal thickness of 1.57 mm
• Features gold-plated copper alloy contacts for reliable conductivity
• Designed for vertical panel mounting installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge connections
• Electronic instrumentation panels
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required board thickness and termination style. Confirm that the single-row configuration meets the design requirements. Check RoHS compliance status if environmental regulations apply to the end product. Ensure the panel cutout dimensions align with the connector's mechanical specifications.

Edgeboard Connectors Selection Notes

Select this model when a single-row connection with 3.96 mm pitch is required for 1.57 mm thick boards. Consider the 5 A current rating and high-temperature tolerance for demanding environments. Verify that the vertical panel mount style fits the enclosure constraints. Compare against other series if dual-edge or different row configurations are needed.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting options. The 306 series is characterized by its low-profile insulator body and reliable performance in industrial settings. This specific part number represents a 12-position variant within that lineup.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with different position counts or termination styles. Cross-reference with distributor databases for equivalent parts from other manufacturers offering similar 3.96 mm pitch specifications.
