306-012-521-102

Edgeboard Connectors Overview

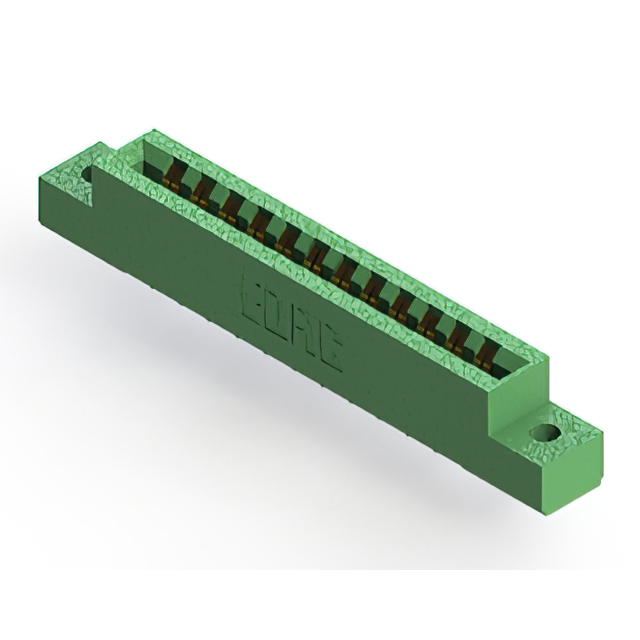

The EDAC Inc. 306-012-521-102 is a dual-edge female card edge connector designed for high-reliability interconnect applications. It features 24 positions with a 0.156-inch (3.96mm) pitch, accommodating standard board thicknesses of 1.57mm. The contacts are gold-plated copper alloy, ensuring low contact resistance and durability. Rated for 5A current, it operates within a temperature range of -40°C to +105°C. The housing utilizes thermoplastic material, providing robust insulation with a minimum resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration supports insertion from both sides of the circuit board.
• Gold-plated contacts provide reliable electrical performance in demanding environments.
• Thermoplastic housing ensures stable insulation and mechanical integrity.

Edgeboard Connectors Applications

• Medical interconnect solutions including ventilators and CPAP machines
• Ambulance communication and monitoring systems
• Hospital room medical equipment connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating thickness, and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference datasheet revisions to confirm compliance with current RoHS directives and material safety standards required for the intended deployment environment.

Edgeboard Connectors Selection Notes

Select this component when dual-sided board insertion is required for space-constrained designs. Verify that the 0.156-inch pitch aligns with the target PCB layout constraints. Confirm that the 5A current rating and 105°C maximum operating temperature meet the thermal and electrical demands of the application circuitry.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is engineered for general-purpose vertical panel or board-to-board connections. It provides a standardized interface for modular electronic assemblies requiring secure, repeatable mating cycles.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult EDAC technical support for cross-reference data if original supply is unavailable.

Edgeboard Connectors FAQ

What is the rated current capacity of the 306-012-521-102?

The connector has a rated current capacity of 5 Amperes.

Does this connector support single-sided or dual-sided board insertion?

It is a dual-edge female connector, supporting insertion from both sides of the circuit board.
