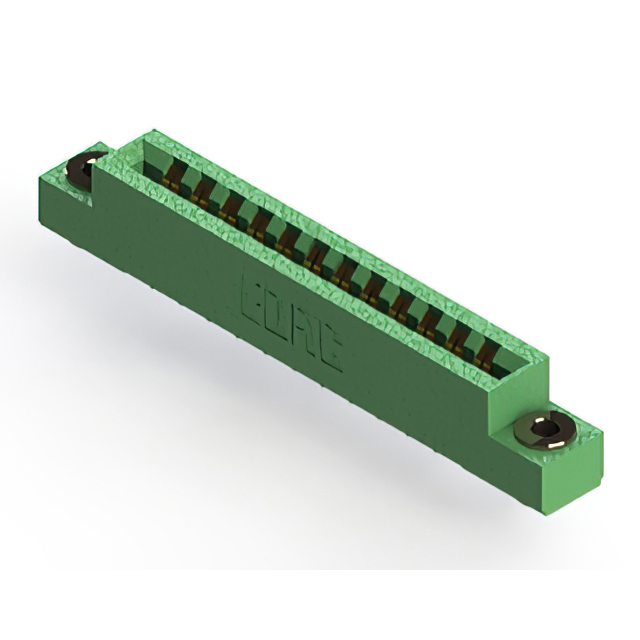

306-012-521-103

$8.98

Description：CONN EDGE DUAL FMALE 24POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:c84ba1552f70 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-012-521-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 24POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-012-521-103

Description：CONN EDGE DUAL FMALE 24POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：12
Number of Positions：24
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-012-521-103

306-012-521-103

Edgeboard Connectors Overview

The EDAC Inc. 306-012-521-103 is a standard card edge connector from the 306 Series, designed for vertical panel mount applications. It features a single row of 12 positions with a 3.96 mm (0.156 inch) contact spacing. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Constructed with copper alloy contacts and gold plating, it ensures reliable electrical performance. The insulator body is made of thermoplastic material, providing durability in demanding environments.

Edgeboard Connectors Feature Summary

Vertical panel mount design for secure installation
Single centerline row configuration for simplified routing
Gold-plated copper alloy contacts for corrosion resistance
Compatible with 0.062 inch nominal PCB thickness

Edgeboard Connectors Applications

Computing and storage systems
Medical interconnect solutions
Industrial control panels
Communications network equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure correct termination style and contact count. Confirm that the target PCB thickness matches the 0.062 inch specification for proper engagement. Check RoHS compliance status if required by project regulations. Ensure panel mounting holes align with the connector's mechanical dimensions before finalizing the design.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row card edge interface is required. The 3.96 mm pitch offers a balance between density and ease of manufacturing. Consider the vertical orientation for space-constrained panel installations. Verify that the thermal and current ratings meet the application's operational requirements.

Edgeboard Connectors Part Context

EDAC Inc. specializes in complex interconnect products for global OEMs. The 306 Series represents their standard card edge connector line, offering various design options. This part number falls within their broader portfolio serving computing, medical, and industrial sectors. The manufacturer emphasizes rigorous quality assurance and logistics support.
