306-013-400-101

$7.52

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:d59138c07021 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-013-400-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 26POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-013-400-101

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：13
Number of Positions：26
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Free Hanging (In-Line)
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-013-400-101

306-013-400-101

Edgeboard Connectors Overview

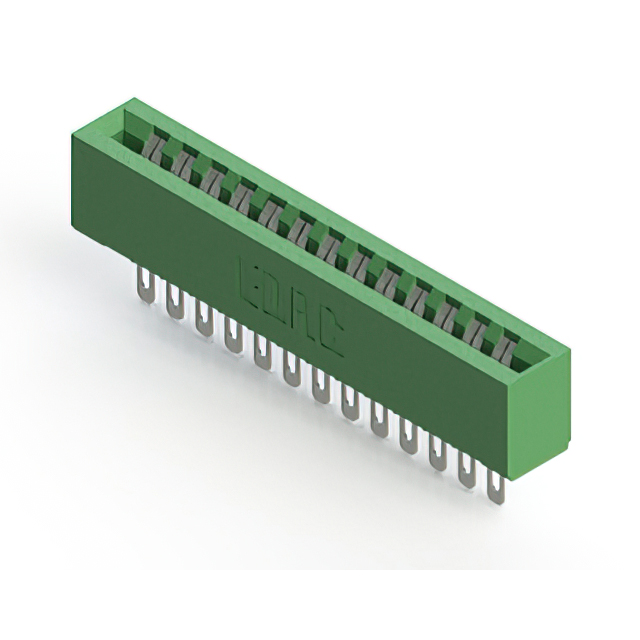

The EDAC 306-013-400-101 is a standard card edge connector receptacle from the 306 series. It features 26 positions with a 3.96 mm pitch and is designed for dual-edge card insertion. The connector utilizes tin-plated contacts and a green thermoplastic polyester housing. It supports a current rating of 5 A and accommodates a board thickness of 1.57 mm. Installation is achieved via panel mount using solder pin termination, ensuring secure vertical alignment for reliable signal transmission in electronic assemblies.

Edgeboard Connectors Feature Summary

Dual-edge female connector design for secure card insertion
Thermoplastic polyester housing provides structural integrity
Solder pin termination ensures stable electrical connection

Edgeboard Connectors Applications

Computing and storage systems
Industrial control modules
Communications network equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and housing color specifications. Ensure compatibility with the target PCB board thickness of 1.57 mm before integration. Confirm that the 26-position layout aligns with the circuit design requirements. Cross-reference the manufacturer datasheet for precise dimensional tolerances and mounting hole locations to guarantee proper fit within the enclosure.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with a 3.96 mm pitch is required. The 26-position count suits applications needing moderate I/O density. Verify that the 5 A current rating meets the system's power distribution needs. Consider the vertical panel mount style for space-constrained enclosures requiring direct board access.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series, established as a leader in card edge and rack & panel interconnect solutions since 1966. The series offers extensive ranges for computing, medical, aerospace, and industrial sectors. EDAC emphasizes rigorous quality assurance and FIFO inspection to ensure error-free delivery of high-reliability connectors for global OEMs.
