306-013-400-103

$9.34

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:af21b4f75b0d Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-013-400-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 26POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-013-400-103

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：13
Number of Positions：26
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-013-400-103

306-013-400-103

Edgeboard Connectors Overview

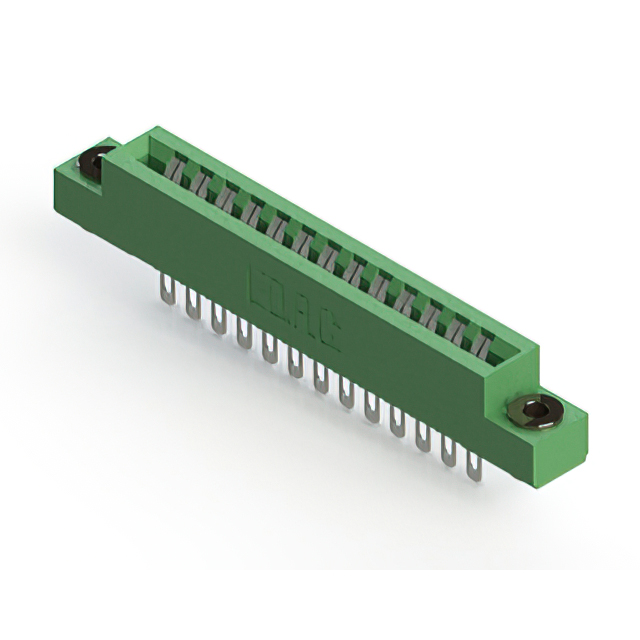

The EDAC Inc. model 306-013-400-103 is a dual-edge card edge connector designed for board-to-board or backplane applications. It features 26 positions with a 0.156-inch (3.96mm) contact pitch. The connector utilizes female contacts with tin plating and is housed in green thermoplastic polyester. It supports through-hole mounting via solder eyelets, ensuring secure attachment to printed circuit boards.

Edgeboard Connectors Feature Summary

Dual-edge configuration accommodates double-sided PCB insertion
Female contact design ensures reliable signal transmission
Tin-plated terminals provide corrosion resistance
Through-hole solder eyelet mounting secures the unit

Edgeboard Connectors Applications

Industrial control systems
Power supply modules
Storage device interfaces
Navigational equipment

Edgeboard Connectors Procurement Notes

Verify the specific series designation and contact count against official EDAC documentation before procurement. Confirm that the tin plating specification aligns with environmental requirements. Ensure the through-hole solder eyelet mounting style matches the target PCB layout. Cross-reference the 0.156-inch pitch dimension with mating card edge specifications to guarantee mechanical compatibility.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required. The tin-plated contacts are suitable for general-purpose applications where gold plating is not strictly mandated. Verify that the green housing material meets thermal and chemical resistance standards for the intended operating environment. Ensure the 26-position count fits the available board space.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of card edge connectors. The series is engineered for robust performance in demanding environments. EDAC designs these components to support various industrial and commercial electronic assemblies. The 306 series offers multiple position counts and pitch options to accommodate diverse board design constraints.
