306-013-400-104

Edgeboard Connectors Overview

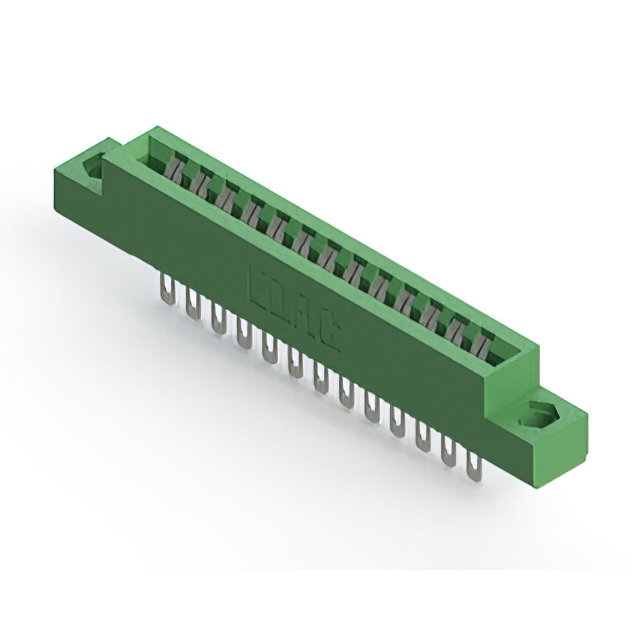

The EDAC Inc. 306-013-400-104 is a standard card edge connector receptacle from the 306 series. It features 10 positions with a 3.96 mm (0.156 inch) contact spacing and utilizes gold-plated copper alloy contacts for reliable signal transmission. Designed for panel mount installation, this vertical connector accepts printed circuit boards with a nominal thickness of 1.57 mm. The insulator body is constructed from thermoplastic polyester, providing structural integrity and electrical insulation. The component supports a current rating of 5 A and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Accepts PCBs with a nominal thickness of 1.57 mm
• Features low profile insulator body construction
• Utilizes single centerline row contact arrangement

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring card edge interface
• Industrial control systems utilizing standard thickness PCBs
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct configuration. Confirm that the required PCB thickness aligns with the 1.57 mm specification. Check regional availability as distribution status may vary by location. Ensure compliance with RoHS directives if applicable to the target market.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount card edge connector is required for 10-position applications. The 3.96 mm pitch accommodates standard board layouts. Verify that the operating environment stays within the specified temperature limits. Consider the gold plating for corrosion resistance in demanding conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of card edge connectors, designed for general-purpose interconnect solutions. The series offers various position counts and mounting styles. The 306-013-400-104 specifically addresses needs for low-profile, high-reliability connections in compact panel installations.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 306 series ordering guide for direct substitutes with different position counts or termination types. Cross-reference with other manufacturers' DIN-standard card edge connectors only if mechanical and electrical parameters match exactly.
