306-013-400-107

Edgeboard Connectors Overview

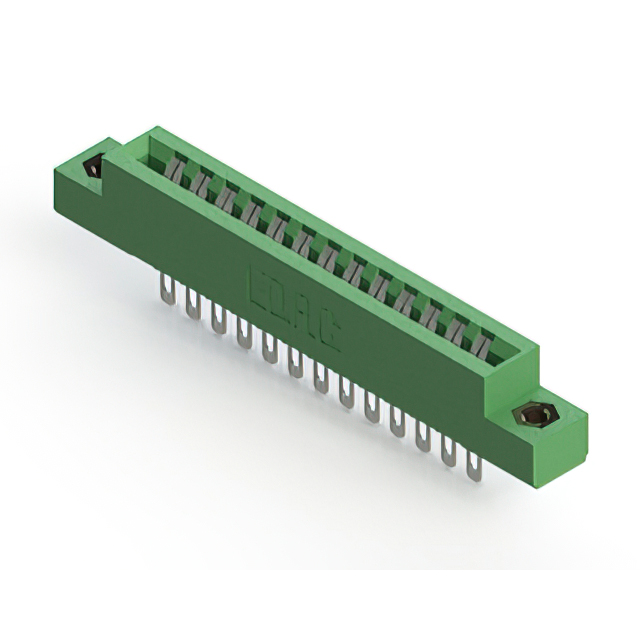

The EDAC Inc. model 306-013-400-107 is a standard card edge connector classified as a header. It features a dual female configuration with 26 positions and a pitch of 0.156 inches (3.96 mm). Designed for vertical panel mount installation, the unit accommodates a board thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 5 A current, and utilize solder pin termination. The housing is constructed from thermoplastic material.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Vertical orientation facilitates panel-mounted structural integration
• Gold-plated copper alloy contacts ensure reliable signal conductivity

Edgeboard Connectors Applications

• Industrial control system interconnects
• Computing and storage backplane connections
• Medical device circuit board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with target PCB stack-up dimensions. Ensure that the required contact plating and termination style align with assembly processes. Cross-reference the position count and pitch specifications to prevent mechanical mismatch during integration.

Edgeboard Connectors Selection Notes

Select this component when a vertical header with 26 positions and 0.156-inch pitch is required. Confirm that the application environment supports the specified current rating and thermal properties of the thermoplastic housing. Validate that the panel mount style fits the enclosure design constraints before finalizing the bill of materials.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series provides versatile interconnect solutions for various electronic applications. EDAC specializes in complex interconnect products for computing, medical, aerospace, and industrial sectors, emphasizing quality assurance and precise manufacturing standards.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same series include models such as 306-012-400-107 and 306-013-400-168. Verify that alternative part numbers match the exact position count, pitch, and mounting orientation requirements before substitution.
