306-013-400-108

Edgeboard Connectors Overview

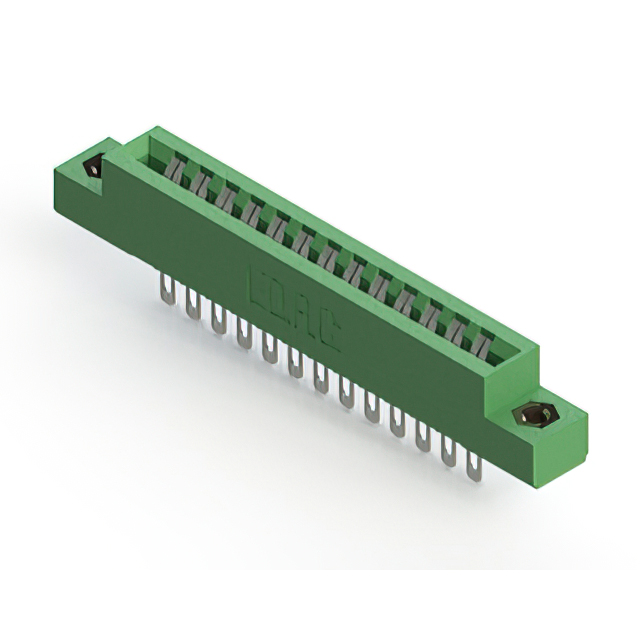

The EDAC Inc. 306-013-400-108 is a standard card edge connector receptacle featuring a single centerline row with 26 positions. It utilizes a 3.96 mm (0.156 inch) contact spacing and is designed to accept printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs gold-plated copper alloy contacts and a solder pin termination type for secure board attachment. Its low-profile thermoplastic polyester insulator body supports vertical panel mount installation, ensuring reliable electrical connectivity in compact electronic assemblies.

Edgeboard Connectors Feature Summary

• Single centerline row configuration with 26 positions
• Low-profile insulator body design
• Gold-plated copper alloy contacts
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Electronic equipment requiring standard card edge interfaces
• Industrial control systems utilizing PCB backplanes
• Communication hardware modules
• Consumer electronics assembly

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to ensure compatibility with required board thickness and termination specifications. Confirm that the selected variant matches the intended application environment regarding temperature ratings and current capacity. Cross-reference the manufacturer part number with authorized distributors to validate authenticity and availability status before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with 3.96 mm pitch is required for 0.062-inch thick PCBs. Ensure the design accommodates vertical panel mounting constraints and solder pin termination processes. Evaluate the 26-position count against signal requirements and verify that the thermoplastic polyester housing meets environmental durability standards for the target deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by robust construction suitable for general-purpose electronic applications. The 306-013-400-108 specifically denotes a 26-position variant within this lineup, offering a balance between connection density and mechanical stability for standard industrial and commercial electronic designs.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical 3.96 mm pitch, 26-position count, and 0.062-inch board thickness compatibility. Verify that mechanical dimensions and termination methods match the original design requirements.
