306-013-420-101

Edgeboard Connectors Overview

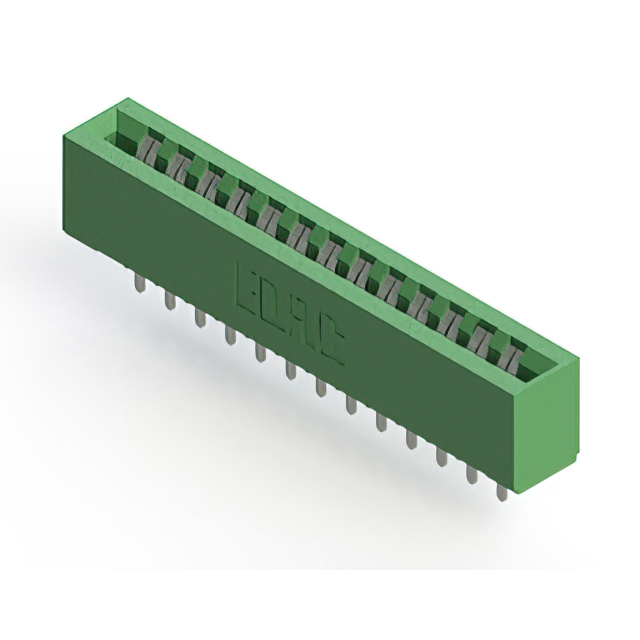

The EDAC Inc. 306-013-420-101 is a standard card edge connector from the 306 series, designed for vertical panel mount applications. It features a dual female configuration with 26 positions and a 3.96 mm (0.156 inch) centerline pitch. The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts rated for 5 A current. Constructed with thermoplastic polyester insulation, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge insertion
• Vertical panel mount orientation with solder pin termination
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic polyester housing for high-temperature stability

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Computing hardware expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact contact plating thickness and material specifications. Ensure compatibility with the target PCB edge guide dimensions and panel cutout requirements before procurement. Confirm RoHS compliance status through the manufacturer's latest certification documents.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-row card edge interface is required with a 3.96 mm pitch. Consider the 5 A current rating and thermal limits for power distribution needs. Evaluate the panel mount style against available chassis space and ensure the 1.57 mm board thickness matches the design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors, which are widely used in modular electronic systems. The series offers various position counts and mounting options, providing flexibility for different board densities. The 306-013-420-101 specifically addresses applications requiring robust vertical connectivity with durable materials.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 306 series variants with matching 26-position counts and 3.96 mm pitch. Verify mechanical dimensions and electrical ratings before cross-referencing with competitors' products to ensure functional equivalence.
