306-013-421-103

Edgeboard Connectors Overview

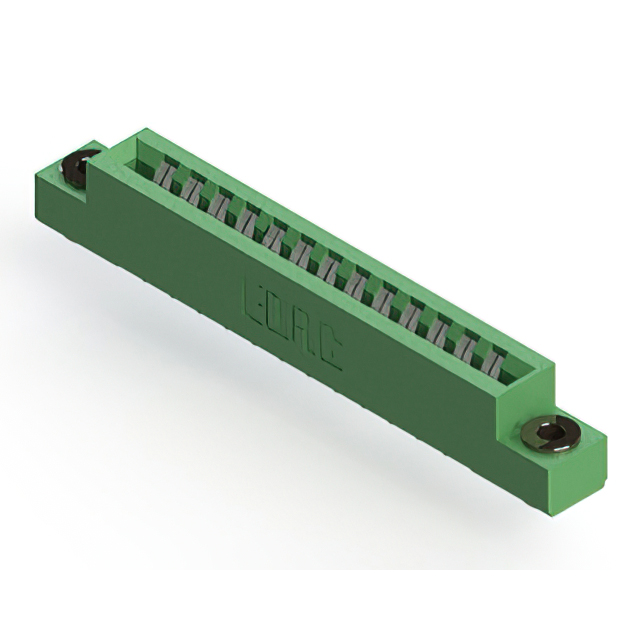

The EDAC Inc. 306-013-421-103 is a standard card edge connector from the 306 series, designed for panel mount installation with a vertical orientation. It features a dual female configuration with 26 positions and a pitch of 3.96 mm (0.156 inches). The connector utilizes tin-plated copper alloy contacts and a green thermoplastic polyester housing. It supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Vertical panel mount style for stable structural integration
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Automotive electronic module mounting

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required contact plating and housing color specifications. Confirm that the dual-edge configuration aligns with the target PCB design requirements before procurement. Cross-reference the RoHS compliance status with current regulatory standards applicable to the end product deployment region.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required for vertical panel mounting applications. Ensure the target PCB thickness falls within the specified operational limits for reliable contact engagement. Consider the 5 A current rating and operating temperature range to verify suitability for the intended electrical load and environmental conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, which offers a range of standard card edge connectors. The series provides various position counts and configurations to support diverse electronic assembly needs. Components in this family are characterized by robust construction and standardized dimensions for consistent performance across industrial applications.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for compatible alternatives with different position counts or contact finishes. Verify mechanical fit and electrical ratings when considering substitute parts from other manufacturers.
