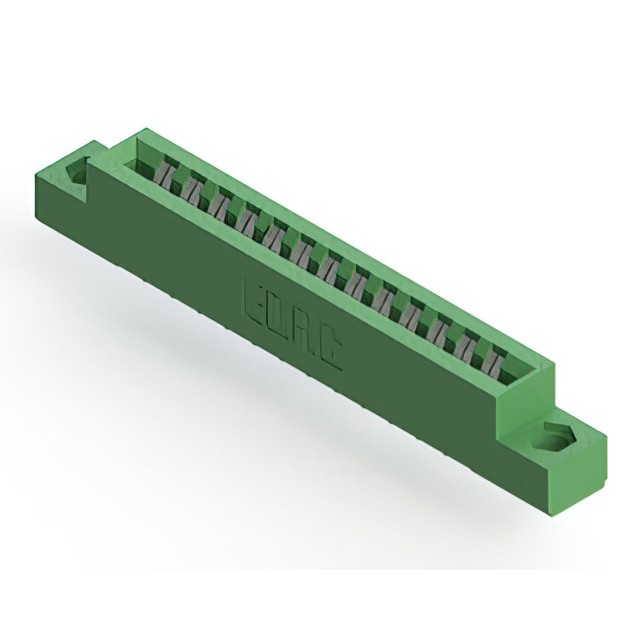

306-013-421-104

$7.52

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:8fd38caaf00e Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-013-421-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 26POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-013-421-104

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：13
Number of Positions：26
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-013-421-104

306-013-421-104

Edgeboard Connectors Overview

The EDAC Inc. 306-013-421-104 is a standard card edge connector receptacle featuring 13 positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts and solder pin termination for secure electrical connections. Designed for panel mount installation at a vertical angle, the unit accommodates printed circuit boards with a thickness of 1.57 mm. The housing is constructed from thermoplastic polyester, providing robust insulation. Rated for 5 A current and operating within a temperature range of -40°C to +105°C, it ensures reliable performance in demanding electronic applications.

Edgeboard Connectors Feature Summary

Vertical panel mount design for stable board integration
Gold-plated contacts ensure durable signal transmission
Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required contact plating and termination style. Confirm the board thickness specification aligns with the target PCB design parameters. Ensure compliance with RoHS3 regulations if required by the end product standards. Cross-reference the manufacturer part number against official distributor catalogs to confirm availability status.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required. The 3.96 mm pitch suits specific board layout constraints. Verify that the 1.57 mm board thickness compatibility matches the assembly requirements. Consider the 5 A current rating for power distribution needs. Ensure the vertical orientation fits within the enclosure spatial limitations.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting configurations. The 306-013-421-104 specifically denotes a 13-position variant with gold contacts. It represents a standardized solution for high-reliability interconnect applications requiring precise alignment and durable mechanical retention.
