306-013-421-112

Edgeboard Connectors Overview

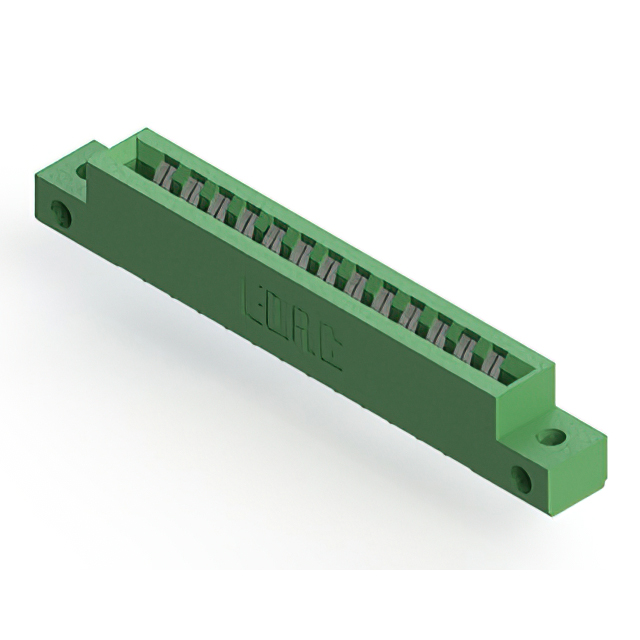

The EDAC Inc. 306-013-421-112 is a standard card edge connector from the 306 series, designed for panel mount installation with a vertical orientation. It features a dual female configuration with 26 positions and a 3.96 mm pitch. The connector utilizes copper alloy contacts with tin plating and a thermoplastic polyester housing. Rated for 5 A current, it accommodates board thicknesses between 1.37 mm and 1.78 mm, operating within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for non-specified dual-edge boards
• Vertical panel mount design with solder pin termination
• Thermoplastic polyester insulator housing for durability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Aerospace electronic assemblies
• Data center infrastructure components
• Power application circuitry

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct contact plating and housing color specifications. Confirm RoHS3 compliance status directly with the manufacturer or authorized distributors prior to procurement. Ensure the selected variant matches the required board thickness tolerance and current rating for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with a 3.96 mm pitch is required. Verify that the target PCB thickness falls within the 1.37 mm to 1.78 mm operational range. Ensure the application environment remains within the specified -40°C to 105°C temperature limits. Confirm compatibility with the vertical panel mount style and solder pin termination method.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, which provides standard card edge connectors for various industrial and commercial applications. The series offers multiple position counts and configurations to support diverse board-to-board and backplane connectivity needs. The 306-013-421-112 specifically addresses requirements for dual-edge connections with high reliability.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for verified substitute part numbers. Cross-reference mechanical dimensions and electrical ratings to ensure functional equivalence. Verify that any alternative component maintains the same pitch, mounting style, and contact configuration.
