Edgeboard Connectors Overview

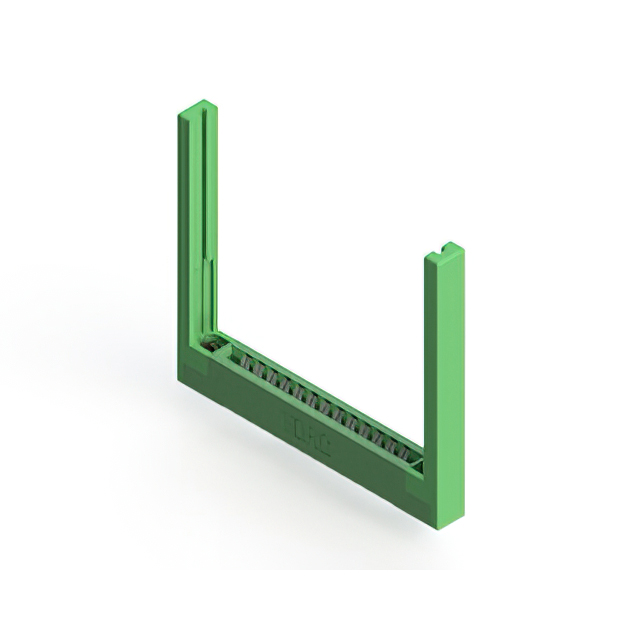

The EDAC Inc. 306-013-421-168 is a standard card edge connector from the 306 series, designed for panel mount installation with vertical orientation. It features a dual female configuration with 26 positions and a 3.96 mm (0.156 inch) pitch. The connector utilizes tin-plated copper alloy contacts and a green thermoplastic polyester insulator. It supports solder pin termination and accommodates board thicknesses between 1.37 mm and 1.78 mm. The component operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Vertical panel mount style with solder pin termination
• Thermoplastic polyester housing with tin-plated copper alloy contacts

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring card edge interfaces
• Industrial control systems utilizing dual-edge PCB connections
• Equipment needing vertical orientation for connector integration

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct contact plating and housing color specifications. Confirm that the required board thickness falls within the specified 1.37 mm to 1.78 mm range for proper mechanical engagement. Check current availability status through authorized distributors as stock levels may vary. Ensure compliance with project requirements for RoHS3 certification and operating temperature limits before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required for panel mounting. The vertical orientation suits applications where space constraints dictate a perpendicular connection profile. Verify that the tin-plated contacts meet the environmental and conductivity needs of the application. Consider the thermoplastic polyester material properties for thermal stability within the specified operating range during system design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors, which are widely used in industrial and commercial electronics. The series offers various position counts and configurations to support diverse PCB interface requirements. The 306-013-421-168 specifically addresses needs for dual-edge connections with robust mechanical retention and reliable electrical performance in demanding environments.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for compatible alternatives with different position counts or contact plating options. Verify dimensional compatibility and electrical ratings before substituting with other manufacturers' products. Ensure any replacement maintains the same pitch and board thickness specifications for seamless integration.
