306-013-500-102

Edgeboard Connectors Overview

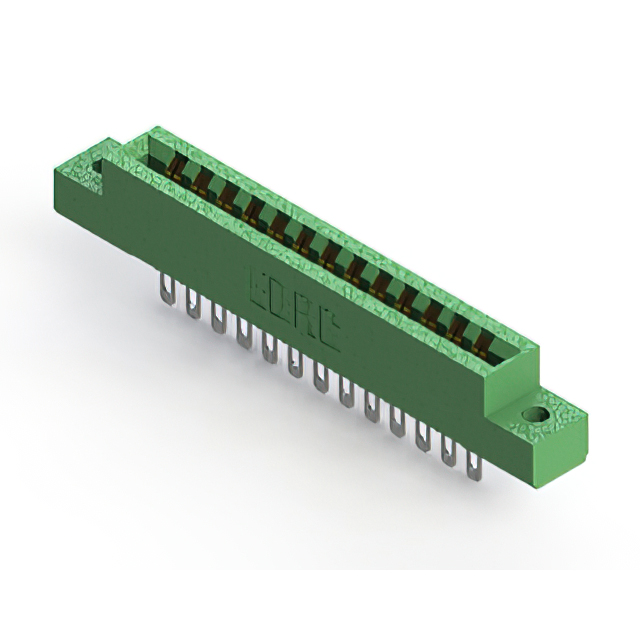

The EDAC Inc. model 306-013-500-102 is a standard card edge connector from the 306 series, designed for dual female board-to-board connections. It features 26 positions with a centerline spacing of 0.156 inches (3.96 mm). The unit supports a maximum PCB thickness of 1.57 mm and utilizes gold-plated copper alloy contacts housed in a green thermoplastic insulator. This vertical panel-mount receptacle ensures reliable signal transmission in electronic assemblies requiring high-density interconnects.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Gold-plated copper alloy terminals for corrosion resistance
• Vertical panel mount design for stable structural integration

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• High-density electronic assembly interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm pin count and plating specifications against project requirements. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Cross-reference the manufacturer datasheet for precise dimensional tolerances and environmental operating limits to guarantee successful integration into the final electronic assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connector is required for vertical panel mounting applications. The 0.156-inch pitch accommodates standard card edge layouts while providing robust mechanical stability. Verify that the housing material and contact plating meet the necessary environmental and electrical performance standards for the intended operational environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors, which are widely utilized in industrial and commercial electronics. The series offers various position counts and mounting styles to support diverse board-to-board connection needs. The 306-013-500-102 specifically addresses applications requiring a dual female configuration with a 26-position layout.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers within the same series or compatible product lines. Ensure any replacement maintains identical pitch, row configuration, and mounting style to preserve mechanical fit and electrical continuity without redesigning the host PCB.
