306-013-500-103

Edgeboard Connectors Overview

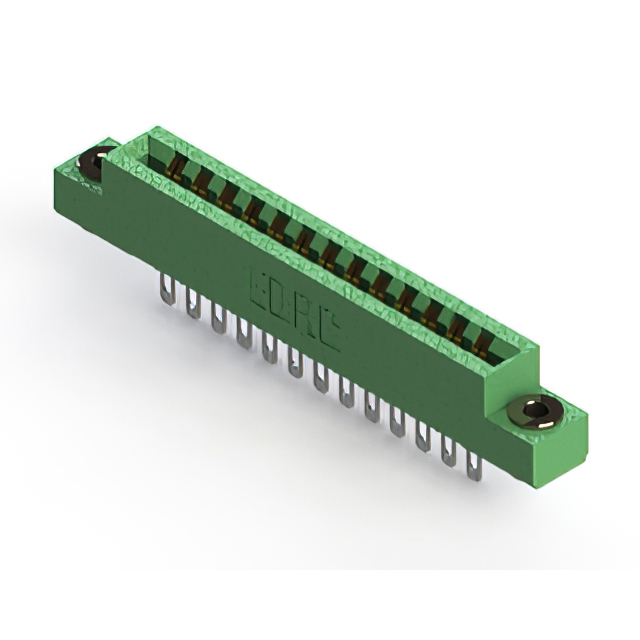

The EDAC 306-013-500-103 is a standard card edge connector featuring 13 positions in a single central row. It utilizes a 3.96 mm (0.156 inch) pitch and is designed for dual female contact configurations. The unit supports panel mount installation with vertical orientation. Electrical specifications include a current rating of 5 A and an insulation resistance of 5 GOhms. The operating temperature range spans from -40°C to +105°C. The housing is constructed from green thermoplastic, while contacts are made of copper alloy with gold plating.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge engagement
• Single central row design for compact panel integration
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic insulator housing for structural stability

Edgeboard Connectors Applications

• Computing and storage system interconnects
• Industrial control panel interfaces
• Aerospace electronic module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct contact plating thickness and housing color options. Confirm that the panel cutout dimensions align with the specified board thickness requirements. Check RoHS compliance status directly with the supplier documentation prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 13-position interface is required for vertical panel mounting. Ensure the mating card edge thickness falls within the acceptable tolerance for the connector's retention mechanism. Verify that the 3.96 mm pitch matches the target PCB layout constraints and that the 5 A current rating meets the circuit load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides versatile interconnect solutions for various industrial and commercial applications. EDAC specializes in complex interconnect products for computing, medical, and aerospace sectors, offering extensive ranges of headers and receptacles.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 306 series variants for alternative pin counts or pitch variations. Verify mechanical compatibility before substituting with generic equivalents.

Edgeboard Connectors FAQ

What is the contact configuration for this connector?

The 306-013-500-103 features a dual female contact arrangement.

What material is used for the contacts?

The contacts are manufactured from copper alloy and feature gold plating.
