Edgeboard Connectors Overview

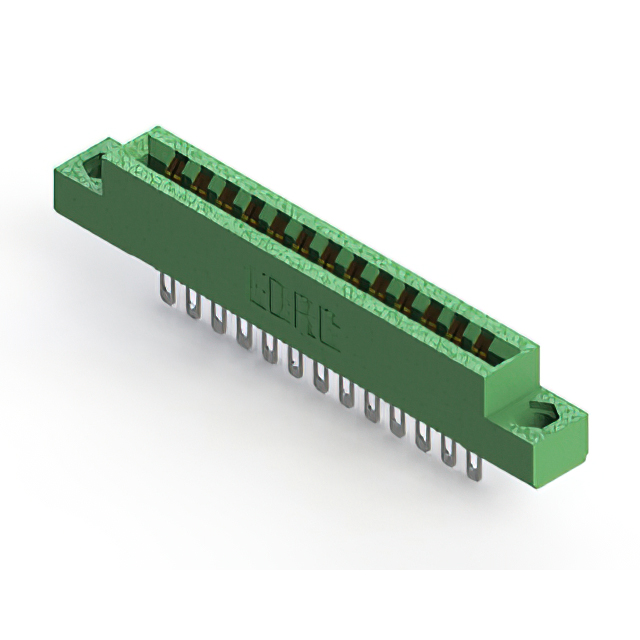

The EDAC Inc. 306-013-500-104 is a dual female card edge connector featuring 26 positions with a 0.156-inch (3.96mm) spacing. It utilizes green insulation and supports flush mount installation via unthreaded top-opening holes with a 0.156-inch diameter. The component operates within a temperature range of -40°C to 105°C. Tail pin dimensions are specified as 0.087 inches by 0.015 inches, with a length of 0.282 inches.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable circuit board interfacing
• Flush mount design with unthreaded top opening for secure panel integration
• Green insulation material providing visual identification and electrical isolation

Edgeboard Connectors Applications

• Interface connections for expansion cards in computing systems
• Interconnect solutions for industrial control panels
• Integration points in medical device hardware assemblies

Edgeboard Connectors Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with required PCB specifications. Confirm that the dual female configuration and 26-position count align with the target application's electrical requirements. Check for any updated environmental compliance certifications prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a flush mount card edge interface is required for high-density applications. Ensure the mounting hole diameter matches the 0.156-inch specification for proper fit. Consider the operating temperature range of -40°C to 105°C for environmental suitability in demanding operational conditions.

Edgeboard Connectors Part Context

EDAC Inc. specializes in interconnect solutions for computing, storage, and industrial sectors. This connector belongs to the 306 series, designed for robust performance in rack and panel applications. The product line emphasizes quality assurance and precise manufacturing standards for global OEM distribution channels.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical and electrical compatibility carefully if considering alternative components from other manufacturers.
