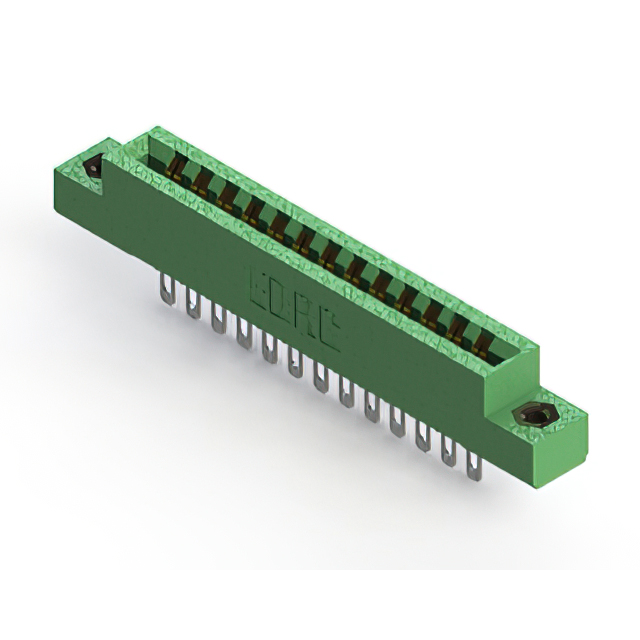

306-013-500-108

$9.34

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:bcc6a985fa9e Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-013-500-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 26POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-013-500-108

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：13
Number of Positions：26
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-013-500-108

306-013-500-108

Edgeboard Connectors Overview

The EDAC 306-013-500-108 is a standard card edge connector from the 306 series, designed for dual-edge board insertion. It features 26 positions with a 0.156-inch (3.96 mm) pitch and supports PCB thicknesses of 1.57 mm. The contacts are gold-plated copper alloy, rated for 5 A current at +105°C maximum operating temperature. Insulation resistance is 5 GOhms. The housing is green thermoplastic, and it utilizes vertical panel mount installation.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for secure board retention
Gold-plated contacts ensure reliable signal transmission
Vertical panel mount design facilitates structured assembly

Edgeboard Connectors Applications

Computing and storage systems
Medical interconnect solutions
Industrial control modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm plating thickness and housing color variants. Ensure compatibility with the target PCB stack-up and mounting hole dimensions. Cross-reference the manufacturer datasheet for precise mechanical tolerances before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when dual-edge connectivity is required for 26-position interfaces. Verify that the application environment remains within the -40°C to +105°C operational range. Confirm that the 0.156-inch pitch aligns with the mating card edge layout requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides a wide range of position counts and mounting styles for rack and panel applications. EDAC specializes in complex interconnect products for global distribution channels and OEMs across multiple technology sectors.
