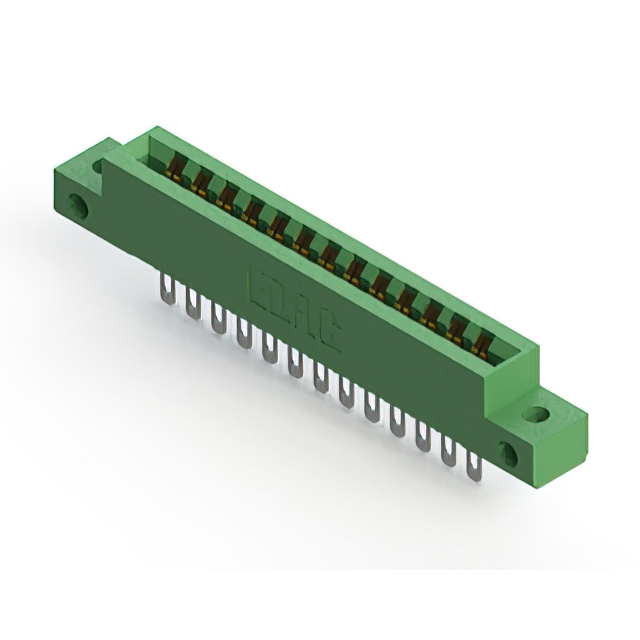

306-013-500-112

$8.66

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:2564a12ae102 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-013-500-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 26POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-013-500-112

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：13
Number of Positions：26
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-013-500-112

306-013-500-112

Edgeboard Connectors Overview

The EDAC Inc. 306-013-500-112 is a card edge connector from the 306 Series, designed for single-side mounting applications. It features a dual female contact configuration with 13 positions arranged in a single row. The component utilizes a 0.156-inch (3.96mm) contact spacing to accommodate printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The contacts are constructed from copper alloy and feature gold plating on the contact area to ensure reliable signal transmission. The insulator body is made of green thermoplastic material, providing a low-profile design suitable for space-constrained environments.

Edgeboard Connectors Feature Summary

Accepts standard .062 inch nominal thickness PCBs
Low profile insulator body design
Gold plated contact area for durability

Edgeboard Connectors Applications

Card edge interconnect solutions
Rack and panel applications
Computing and storage systems

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your board thickness and pin count requirements. Ensure that the single-sided configuration aligns with your assembly layout. Cross-reference the series designation to confirm mechanical fit within your enclosure constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, dual-female interface is required for .062 inch thick boards. The 0.156 inch spacing dictates the trace routing width on the mating PCB. Consider the low-profile housing if vertical clearance is limited. Verify that the gold plating specification meets the environmental and conductivity needs of the target application.

Edgeboard Connectors Part Context

EDAC Inc. specializes in interconnect solutions for computing, medical, aerospace, and industrial sectors. The 306 Series represents their range of card edge connectors designed for robust performance. This specific model integrates into broader system architectures requiring reliable electrical connections between backplanes and plug-in cards.
