306-013-520-103

Edgeboard Connectors Overview

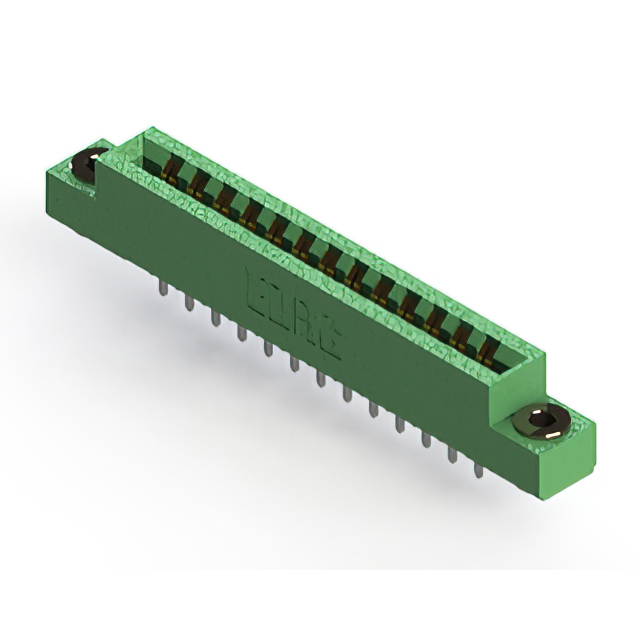

The EDAC Inc. model 306-013-520-103 is a standard card edge connector designed for vertical panel mounting applications. This component features a dual female contact configuration with a total of 26 positions, arranged to accommodate a printed circuit board with a nominal thickness of 0.062 inches (1.57 mm). The contacts are spaced at a pitch of 0.156 inches (3.96 mm) along a single centerline row. Constructed with copper alloy contacts and gold plating, the unit utilizes a thermoplastic insulator body. It is rated for a current capacity of 5 amperes and offers an insulation resistance of 5 gigaohms.

Edgeboard Connectors Feature Summary

• Dual female contact design providing robust signal pathways for double-sided card edge interfaces
• Vertical panel mount orientation ensures secure mechanical integration into chassis structures
• Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance over operational life

Edgeboard Connectors Applications

• Industrial control systems requiring durable panel-mounted interconnects
• Communication equipment utilizing standardized card edge modules
• Medical devices needing reliable vertical connection points

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required termination style and mounting hardware configuration. Confirm that the thermal rating aligns with the operating environment of the target application. Ensure compatibility with the PCB thickness specification of 0.062 inches to guarantee proper contact engagement. Cross-reference the pin count against the schematic requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-sided card edge interface is required for vertical panel installation. The 26-position layout suits applications needing moderate I/O density within a compact footprint. Consider the 5A current rating for power distribution needs alongside signal transmission. Verify that the 3.96mm pitch matches the existing PCB trace spacing to prevent manufacturing misalignment during assembly processes.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by high-density options and versatile mounting styles suitable for various industrial environments. The 306 series provides a balance of electrical performance and mechanical durability, widely used in sectors demanding reliable electronic interconnections.

Edgeboard Connectors Replacement Considerations

Direct substitutes include EDAC part numbers such as 306-013-520-107 or 306-018-520-103, which share similar series attributes but may differ in position count or termination specifics. Always verify dimensional drawings and electrical ratings before swapping components.
