306-013-520-104

Edgeboard Connectors Overview

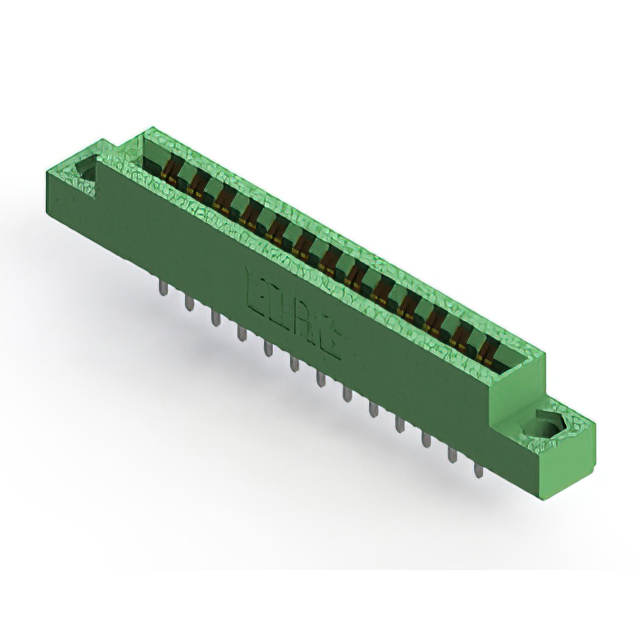

The EDAC Inc. 306-013-520-104 is a standard card edge connector header featuring 26 positions with a 3.96 mm (0.156 inch) contact spacing. It utilizes gold-plated copper alloy contacts and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs a vertical panel mount installation style with solder pin termination. Its low-profile insulator body is constructed from green thermoplastic material, providing reliable electrical interconnection for single centerline row applications.

Edgeboard Connectors Feature Summary

• Accepts standard 0.062 inch nominal thickness PCBs
• Features gold-plated copper alloy contacts for conductivity
• Utilizes a low-profile thermoplastic insulator body

Edgeboard Connectors Applications

• Medical interconnect solutions
• Ambulance equipment systems
• Ventilator hardware integration

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to ensure compatibility with your design requirements. Confirm that the 26-position configuration and 3.96mm pitch align with your PCB layout specifications. Check current availability status through authorized distributors as supply conditions may vary. Ensure that the vertical panel mount style meets your mechanical assembly constraints before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge interface with 26 positions is required. The 3.96mm pitch accommodates standard board thicknesses commonly used in industrial and medical electronics. Consider the vertical orientation for panel mounting applications where space efficiency is prioritized. Verify that the gold plating on copper alloy contacts satisfies the environmental and durability requirements of the target deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is designed for robust interconnection needs across various electronic sectors. The 306-013-520-104 specifically denotes a 26-position header variant within this lineup. It represents a standardized solution for connecting edge-board modules to main system backplanes or panels.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Ensure any replacement maintains identical 26-position count and 3.96mm pitch specifications. Verify mechanical compatibility regarding panel mount height and PCB thickness acceptance.
