306-013-520-108

Edgeboard Connectors Overview

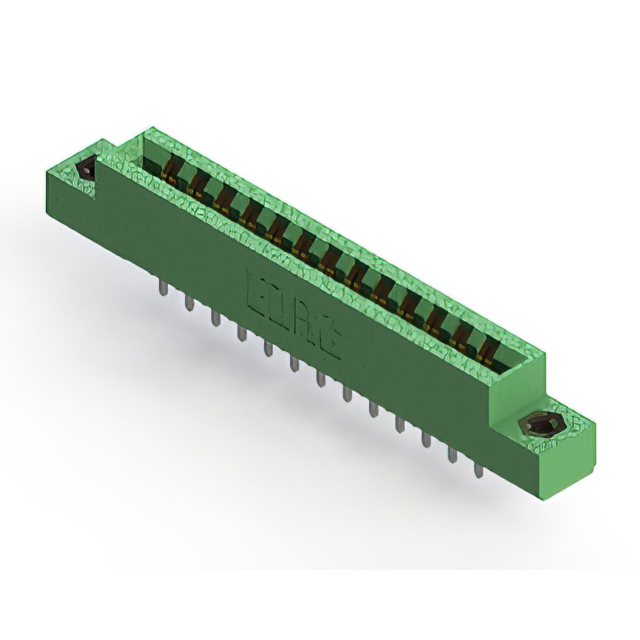

The EDAC Inc. part number 306-013-520-108 is a dual female card edge connector featuring 26 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes gold-plated copper alloy contacts and a green thermoplastic insulator. The unit supports a maximum current rating of 5A and an insulation resistance of 5 Gohms. Designed for panel mounting, it accommodates a board thickness of 0.054 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual female configuration with gold-plated contacts for reliable signal transmission
• Panel mount design with flange features including threaded inserts and top opening
• Green thermoplastic insulator providing high insulation resistance and durability

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interconnects
• Communication equipment utilizing standard card edge interfaces
• Medical devices needing connectors with specified thermal operating ranges

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer lead time, which may be approximately nine weeks, before finalizing procurement plans. Confirm that the required quantity aligns with the manufacturer's standard packaging and ordering multiples. Ensure that the application environment falls within the specified -40°C to 105°C operational temperature limits to guarantee long-term reliability and performance stability.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female card edge connector with a 3.96mm pitch is required for panel installation. The presence of threaded inserts in the flange facilitates secure mechanical attachment. Verify compatibility with the target PCB thickness of 0.054 inches and ensure the 5A current rating meets the circuit requirements for the intended application.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its use of thermoplastic insulators and gold-plated contacts. The 306 series provides versatile mounting options and is designed for applications requiring durable electrical connections in industrial and commercial environments.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available for this specific component. Cross-referencing requires matching the 26-position count, 3.96mm pitch, dual female configuration, and panel mount style with threaded inserts.
