306-013-520-112

Edgeboard Connectors Overview

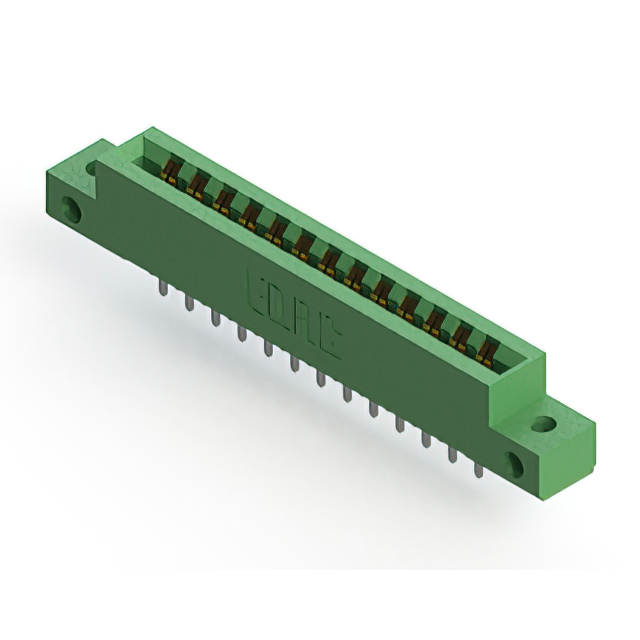

The EDAC Inc. model 306-013-520-112 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. This component features a dual-edge female configuration with 13 positions and a contact spacing of 0.156 inches (3.96 mm). It utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and is rated for a current capacity of 5 amperes. The insulator body is constructed from green thermoplastic material, providing an insulation resistance of 5 gigohms. The connector is engineered to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm), offering a low-profile design suitable for space-constrained electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodating single centerline row contacts
• Gold-plated copper alloy terminals ensuring stable electrical connectivity
• Low-profile thermoplastic insulator body compatible with standard PCB thicknesses

Edgeboard Connectors Applications

• Computing and storage system interconnects
• Medical device circuit board connections
• Industrial control panel interfaces
• Communication network hardware assembly

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact pin count, plating specifications, and termination style before purchase. Ensure that the selected variant matches the required PCB thickness and mounting orientation for the target application. Cross-reference the part number with the latest datasheet to confirm compliance with RoHS directives and other relevant regulatory standards applicable in your region.

Edgeboard Connectors Selection Notes

Select this connector when a vertical panel mount solution is required for dual-edge card applications. The 3.96 mm pitch and 13-position layout define the interface geometry, while the 5 A current rating dictates the power handling capability. Confirm that the host system accommodates the specified 1.57 mm board thickness and that the green thermoplastic housing meets environmental requirements for the intended operating conditions.

Edgeboard Connectors Part Context

EDAC Inc., established in 1966, specializes in high-quality interconnect solutions for global OEMs. The company provides extensive ranges of card edge and rack & panel connectors serving computing, medical, aerospace, and industrial sectors. The 306 series represents a core product line within their portfolio, focusing on reliable performance and diverse mounting options for complex electronic systems.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers within the 306 series or other compatible families. Do not assume interchangeability based solely on similar pin counts or pitch dimensions without verifying mechanical fit and electrical ratings against the original specification sheet.
