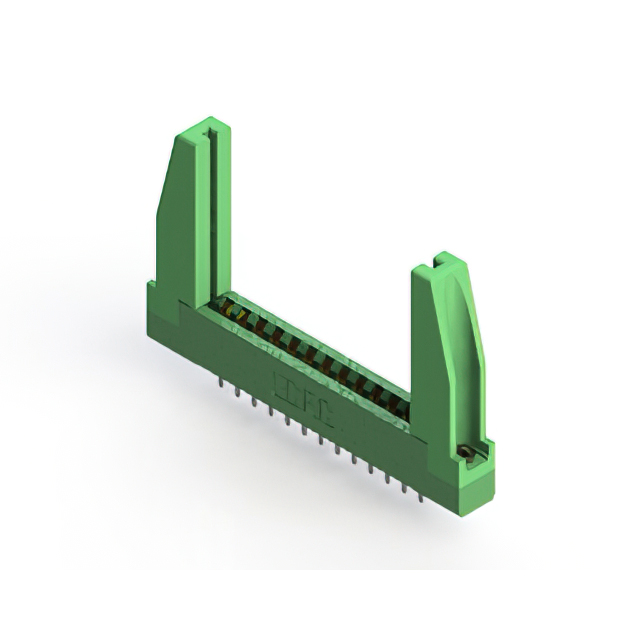

306-013-520-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 26POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-013-520-178
- Description：CONN EDGE DUAL FMALE 26POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：13
- Number of Positions：26
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-013-520-178
Edgeboard Connectors Overview
The EDAC Inc. 306-013-520-178 is a standard card edge connector receptacle featuring 26 positions with a 3.96 mm (0.156 inch) pitch. It utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. Designed for through-hole vertical mounting, it supports a 1.57 mm board thickness and carries a 5 A current rating.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for secure card edge engagement
- Gold-plated terminals ensure reliable electrical conductivity
- Thermoplastic polyester housing provides structural stability
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Consumer electronics module interfaces
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating specifications, and orientation. Ensure compatibility with target PCB stack-up dimensions and thermal requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a 26-position dual-edge interface is required. Confirm that the 3.96 mm pitch aligns with the mating card design. Validate that the vertical through-hole termination method matches the assembly process capabilities.
Edgeboard Connectors Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles, providing standardized solutions for high-reliability electronic interconnections across multiple industrial sectors.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 306 series variants for alternative position counts. Verify mechanical footprint compatibility if substituting with connectors from different manufacturers offering similar pitch specifications.
