306-013-521-102

Edgeboard Connectors Overview

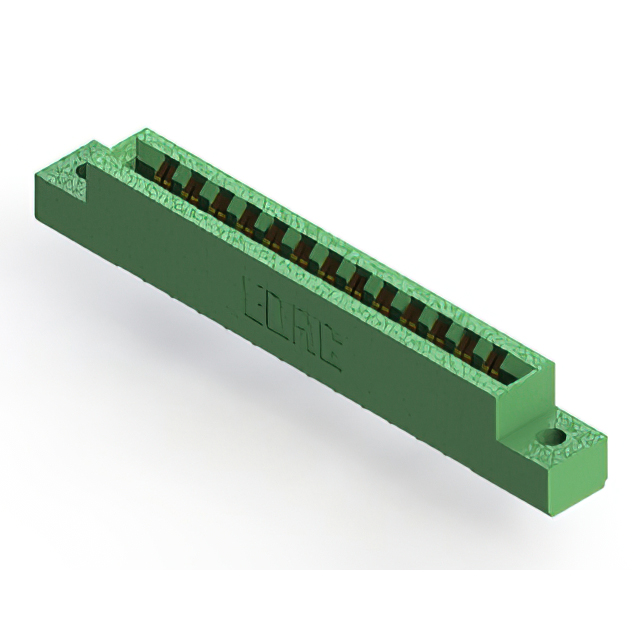

The EDAC Inc. 306-013-521-102 is a dual female card edge connector designed for standard board applications. It features 26 positions arranged in a single centerline row with .156 inch (3.96mm) contact spacing. The connector accepts printed circuit boards with a nominal thickness of .062 inch (1.57mm). Constructed with gold-plated contacts and a green insulator body, it offers a low-profile design suitable for space-constrained environments.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Single centerline row arrangement with .156 inch spacing
• Gold-plated contacts for reliable signal transmission
• Low-profile insulator body construction

Edgeboard Connectors Applications

• Standard card edge interface connections
• Industrial control system backplanes
• Telecommunications equipment interconnects
• General-purpose electronic module mounting

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required board thickness and contact plating specifications. Confirm that the single row configuration meets the pin count requirements of the target application. Cross-reference the datasheet dimensions against the PCB layout to guarantee proper mechanical fit and alignment during assembly processes.

Edgeboard Connectors Selection Notes

Select this component when a dual female card edge connector with .156 inch spacing is required. Ensure the application supports a nominal PCB thickness of .062 inches. Consider the low-profile form factor if vertical space limitations exist within the enclosure design. Validate that the gold contact plating meets the environmental durability needs of the installation site.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of card edge connectors. The series provides various configurations for standard board interfaces. The 306-013-521-102 specifically addresses needs for dual female connections with defined spacing parameters. It serves as a standard interconnect solution within the broader EDAC product portfolio for electronic assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 306 series variants with matching position counts and spacing. Verify mechanical dimensions and electrical ratings before swapping. Alternative manufacturers offering similar card edge connectors must match the .156 inch pitch and .062 inch board thickness acceptance criteria.
