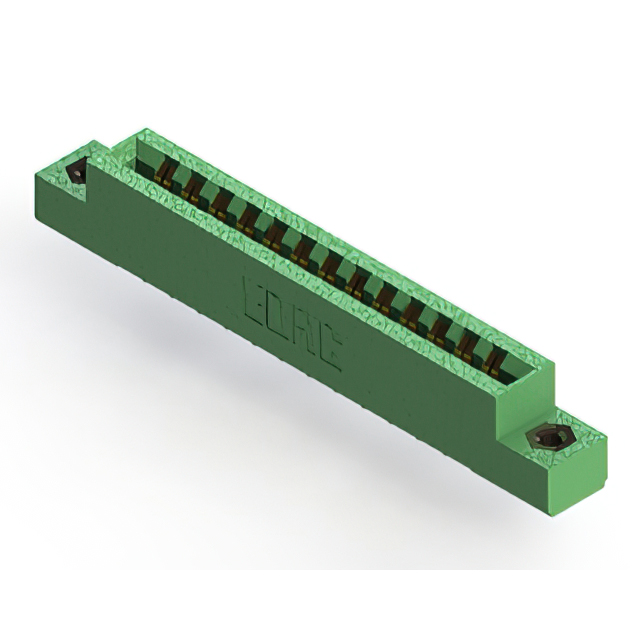

306-013-521-108

$9.34

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:9f30dc1f7be5 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-013-521-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 26POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-013-521-108

Description：CONN EDGE DUAL FMALE 26POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：13
Number of Positions：26
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-013-521-108

306-013-521-108

Edgeboard Connectors Overview

The EDAC Inc. 306-013-521-108 is a dual female edgeboard connector designed for printed circuit board applications. It features a contact spacing of 0.156 inches (3.96 mm) with a single centerline row configuration. The unit accommodates nominal PCB thicknesses of 0.062 inches (1.57 mm). Constructed with a low-profile insulator body, it utilizes gold-plated contacts to ensure reliable signal transmission in electronic assemblies.

Edgeboard Connectors Feature Summary

Dual female contact configuration for secure card insertion
Low-profile insulator body design for space-constrained environments
Gold-plated contacts to maintain signal integrity

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Consumer electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific pin count and mating card dimensions against the official datasheet before procurement. Confirm that the required PCB thickness aligns with the 0.062-inch specification. Ensure compatibility with existing panel mounting requirements and check for any specific environmental ratings if operating in extreme conditions.

Edgeboard Connectors Selection Notes

Select this component when a low-profile dual-edge connector with 0.156-inch spacing is required. It is suitable for applications needing robust gold-plated connections on standard 0.062-inch boards. Consider alternative models if higher temperature ratings or different contact counts are necessary for the specific system design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of edgeboard connectors. The series is characterized by its versatility in providing multiple card guide solutions and extra mounting options. These connectors are engineered for high reliability in demanding electronic environments, supporting various industry standards for board-to-board connectivity.
