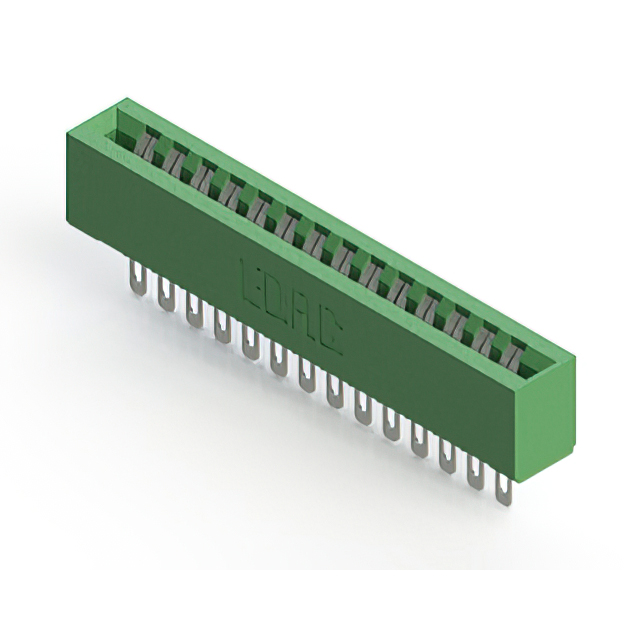

306-014-400-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 28POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-014-400-101
- Description：CONN EDGE DUAL FMALE 28POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：14
- Number of Positions：28
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-014-400-101
Edgeboard Connectors Overview
The EDAC Inc. part number 306-014-400-101 is a dual-sided female card edge connector belonging to the 306 series. It features 28 positions with a contact pitch of 0.156 inches (3.96 mm). The connector utilizes a solder termination method and is designed for panel mount installation. It operates within a temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Dual-sided female contact configuration for board-to-board connectivity
- Solder pin termination for secure PCB attachment
- Panel mount style for structural stability
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Telecommunications equipment backplanes
- Consumer electronics assembly
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to ensure correct termination and mounting variations. Confirm that the 28-position dual-row specification matches the target PCB layout dimensions. Check for any recent product change notifications or environmental compliance updates prior to finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a 3.96 mm pitch dual-sided interface is required for panel-mounted applications. Ensure the mating card thickness accommodates the connector's guide rails. Verify that the operating temperature range meets the environmental demands of the intended deployment scenario without exceeding the specified limits.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series provides various row counts and termination options. The 306-014-400-101 variant specifically addresses needs for moderate density connections with reliable solder joint integrity in vertical panel configurations.
Edgeboard Connectors Replacement Considerations
Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may not match the precise 0.156-inch pitch or panel mount geometry. Validate mechanical fit and electrical ratings before substituting.
