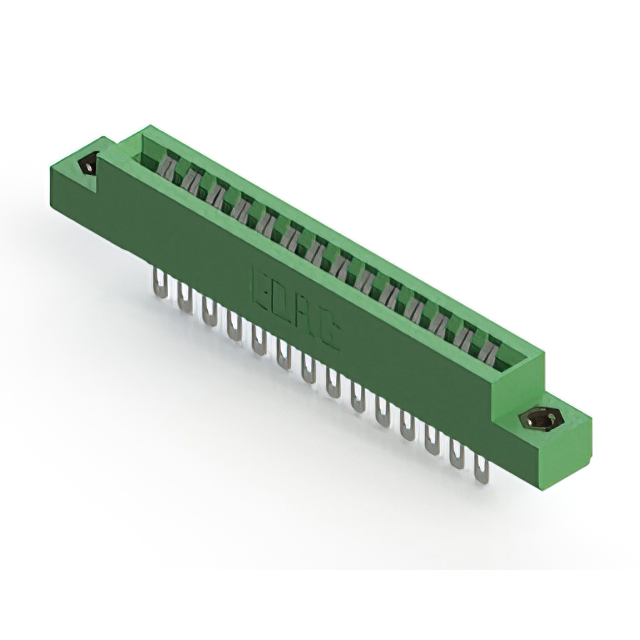

306-014-400-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 28POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 306-014-400-108
- Description：CONN EDGE DUAL FMALE 28POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：14
- Number of Positions：28
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 306-014-400-108
Edgeboard Connectors Overview
The EDAC Inc. 306-014-400-108 is a standard card edge connector receptacle featuring 14 positions with a 3.96 mm pitch. Designed for panel mount installation, it utilizes gold-plated copper alloy contacts and thermoplastic polyester housing. The component supports a current rating of 5 A and accommodates a board thickness of 1.57 mm.
Edgeboard Connectors Feature Summary
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Thermoplastic polyester housing provides structural stability
- Panel mount configuration allows secure vertical integration
Edgeboard Connectors Applications
- Industrial control systems
- Communication equipment interfaces
- Medical device circuitry
Edgeboard Connectors Procurement Notes
Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the receiving printed circuit board matches the required 1.57 mm thickness specification. Confirm that the application environment aligns with the thermal and electrical ratings defined in the datasheet before finalizing procurement decisions.
Edgeboard Connectors Selection Notes
Select this component when a single-row card edge interface with a 3.96 mm pitch is required. It is suitable for applications needing a 5 A current capacity and panel mounting style. Verify that the mating card dimensions are compatible with the specified board thickness constraint.
Edgeboard Connectors Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. This specific model represents a single-row receptacle designed for robust industrial and commercial electronic interconnections.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for verified substitute part numbers. Cross-reference specifications such as pitch, row count, and mounting style to ensure functional equivalence.
