306-014-400-112

Edgeboard Connectors Overview

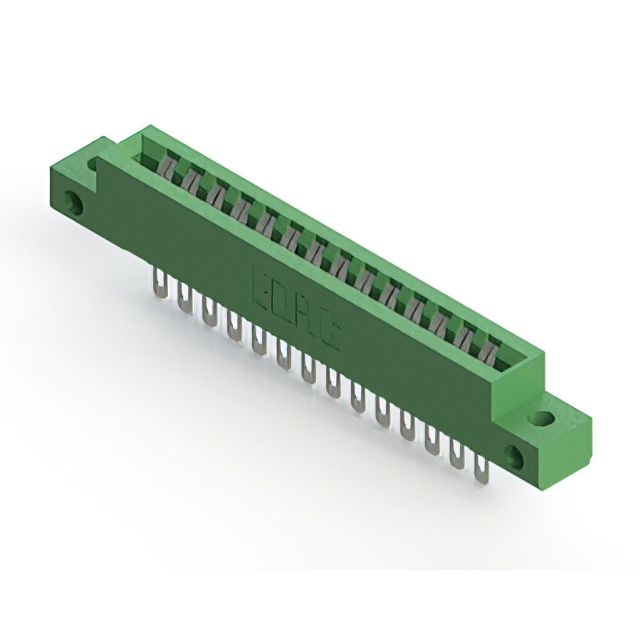

The EDAC Inc. part number 306-014-400-112 is a standard card edge connector receptacle belonging to the 306 series. It features a single-sided configuration with 14 positions and a pitch of 3.96 mm (0.156 inches). The connector is designed for panel mount installation at a vertical orientation, accommodating a board thickness of 1.57 mm. Contacts are made of copper alloy with gold plating and utilize solder lug termination. The housing is constructed from thermoplastic polyester.

Edgeboard Connectors Feature Summary

• Single-sided card edge receptacle design for vertical panel mounting
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides structural integrity

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Computing and storage equipment backplanes
• Medical device circuit board integration

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact configuration and plating specifications. Ensure compatibility with the target PCB thickness of 1.57 mm during mechanical integration. Confirm that the single-sided layout aligns with the circuit design requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with a 3.96 mm pitch is required for panel-mounted applications. The vertical orientation suits space-constrained enclosures where board insertion occurs perpendicular to the mounting surface. Verify that the 14-position count matches the signal routing needs and that the solder lug termination method is compatible with the assembly process.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge solutions. The series offers various position counts and configurations tailored for diverse industrial and commercial applications. EDAC has established itself as a provider of interconnect solutions since 1966, focusing on quality and reliability for global distribution channels.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 306 series variants such as 306-014-420-104 for potential dual-sided or alternative pin-count options if the single-sided configuration does not meet system requirements. Ensure any substitute maintains the 3.96 mm pitch and 1.57 mm board thickness tolerance.
