306-014-420-101

Edgeboard Connectors Overview

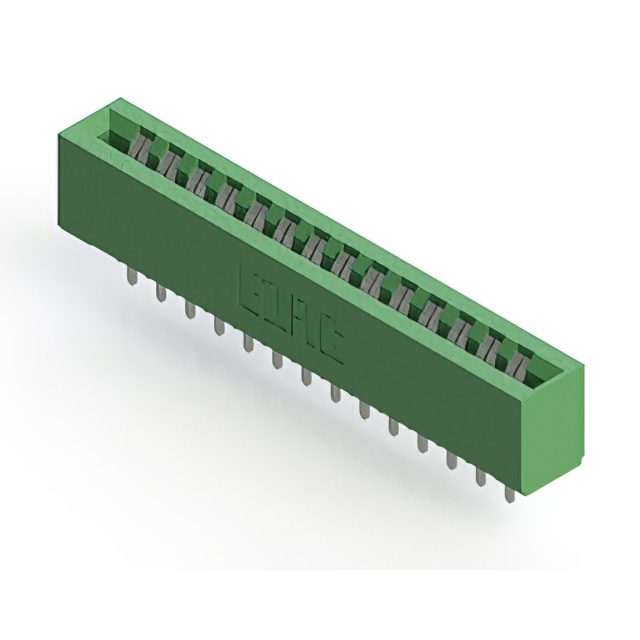

The EDAC Inc. model 306-014-420-101 is a standard card edge connector designed for single-side board insertion. It features 14 positions with a pitch of 3.96 mm and supports a maximum PCB thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts rated for 5 A current and offers an insulation resistance of 5000 MOhms. It employs through-hole solder pin termination and is constructed with a thermoplastic housing, suitable for vertical panel mounting applications.

Edgeboard Connectors Feature Summary

• Single-sided card edge receptacle configuration
• Gold-plated copper alloy contact system
• Thermoplastic polyester housing material
• Through-hole solder pin termination

Edgeboard Connectors Applications

• Industrial control systems
• Communication equipment interfaces
• Medical device circuit boards
• Energy management hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm plating thickness and contact material variations. Ensure the target PCB design accommodates the specified 1.57 mm thickness limit and 3.96 mm pitch. Confirm RoHS compliance status through official manufacturer documentation prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 14-position connection is required for vertical panel integration. The 3.96 mm pitch suits standard edge board widths. Verify that the 5 A current rating meets the circuit requirements and that the thermoplastic housing withstands the operational temperature range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting styles. The 306-014-420-101 specifically addresses needs for moderate density connections in industrial and commercial electronics sectors requiring reliable signal transmission.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include models with identical pitch and position counts but different suffixes indicating variant plating or packaging. Cross-series replacements require matching the 3.96 mm pitch and 1.57 mm board thickness constraints.
