306-014-420-103

Edgeboard Connectors Overview

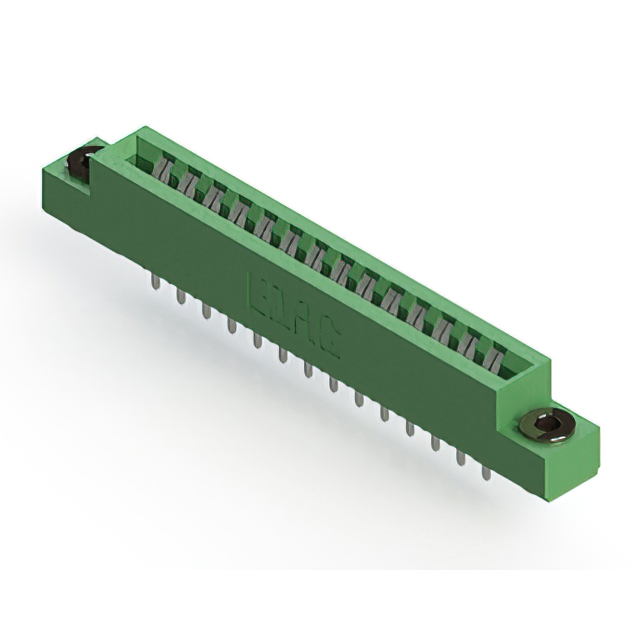

The EDAC Inc. 306-014-420-103 is a dual-edge female card edge connector with 28 positions and a 0.156-inch (3.96mm) pitch. It features tin-plated copper alloy contacts, a green thermoplastic polyester insulation body, and a flush mount flange with a floating bobbin design. The component supports panel mounting via solder termination and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge receptacle configuration for non-specified board types
• Floating bobbin flange mechanism for secure alignment
• Tin-plated copper alloy contacts for reliable conductivity

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Consumer electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct contact plating and flange characteristics. Confirm that the selected variant matches the required board thickness specifications. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current product status before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required. Ensure the application environment falls within the specified operating temperature range. Verify compatibility with the target PCB thickness and mounting style requirements. Consider the floating bobbin feature for applications requiring precise board alignment during insertion.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 306 series, designed for standard card edge applications. The series offers various position counts and termination options. The 306-014-420-103 specifically provides a 28-position configuration suitable for moderate-density interconnect needs in electronic assemblies requiring robust mechanical retention.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Generic cross-references may not match critical dimensions or material specifications. Verify compatibility with existing tooling and assembly processes before implementing any substitute components.
