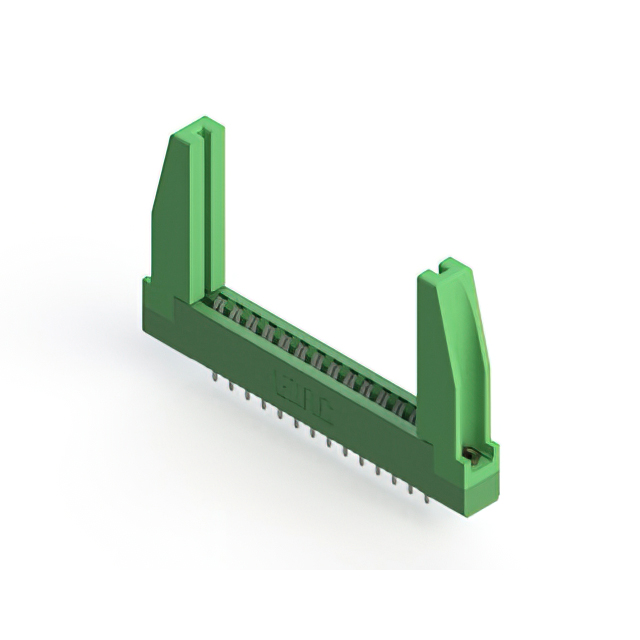

306-014-420-178

$10.32

Description：CONN EDGE DUAL FMALE 28POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:8c07ae964d7c Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

306-014-420-178 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 28POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 306-014-420-178

Description：CONN EDGE DUAL FMALE 28POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：14
Number of Positions：28
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 306-014-420-178

306-014-420-178

Edgeboard Connectors Overview

The EDAC Inc. 306-014-420-178 is a standard card edge connector receptacle featuring 28 positions with dual female contacts. It utilizes a 0.156-inch (3.96 mm) pitch and is designed for 1.57 mm thick circuit boards. The component employs gold-plated copper alloy contacts and thermoplastic polyester insulation, supporting a 5 A current rating. Installation is achieved via solder lug termination in a panel mount configuration.

Edgeboard Connectors Feature Summary

Dual female contact design for secure board interface
Gold-plated copper alloy terminals for conductivity
Thermoplastic polyester housing for insulation stability

Edgeboard Connectors Applications

Industrial equipment interconnects
Telecommunications system modules
Computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the required solder lug termination style matches the target PCB layout. Confirm that the dual female contact configuration aligns with the mating card edge requirements before procurement.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female interface is required for 1.57 mm thick boards. The 0.156-inch pitch dictates the trace spacing on the mating card. Verify that the panel mount installation method fits the enclosure constraints and that the 5 A current rating meets the application load demands.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting styles. This specific model offers a high-density 28-position arrangement suitable for applications requiring robust signal or power transmission between backplanes and daughter cards.
