306-014-421-104

Edgeboard Connectors Overview

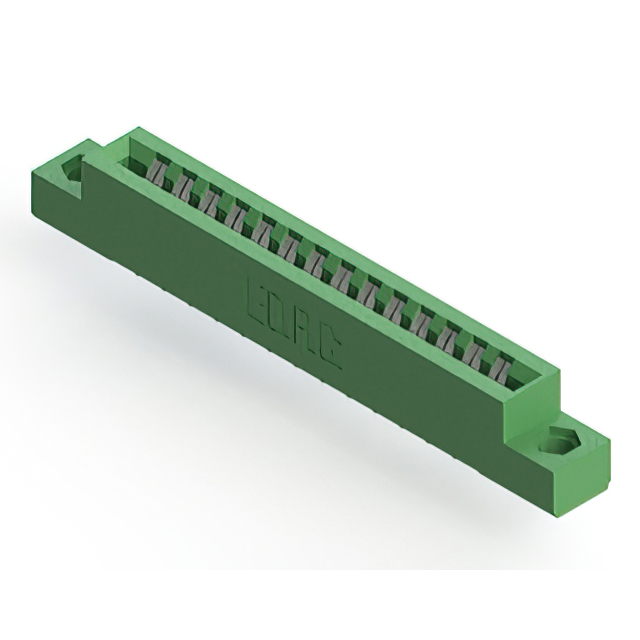

The EDAC Inc. 306-014-421-104 is a standard card edge connector designed for panel mount applications. It features a dual female configuration with 28 positions arranged in two rows, providing a total of 56 contacts. The connector utilizes a 3.96 mm (0.156 inch) pitch and is compatible with board thicknesses ranging from 1.37 mm to 1.78 mm (0.054" to 0.070"). Contact plating is specified as tin, and the housing is constructed from green thermoplastic polyester. It supports solder pin termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Panel mount installation with vertical orientation
• Thermoplastic polyester insulation for environmental stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating and row configuration. Ensure compatibility with the target PCB thickness specifications before procurement. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface is required for panel-mounted assemblies. The 3.96 mm pitch accommodates standard board widths. Verify that the tin-plated contacts meet the electrical conductivity requirements for the intended signal or power lines. Ensure the mounting style aligns with the mechanical enclosure design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting options. The 306-014-421-104 specifically denotes a 28-position dual-row variant. It is manufactured by EDAC Inc., a provider of interconnection solutions for industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with different position counts or plating options. Cross-reference with other manufacturers' 0.156 inch pitch dual-edge connectors if alternative sourcing is necessary.
