306-014-421-112

Edgeboard Connectors Overview

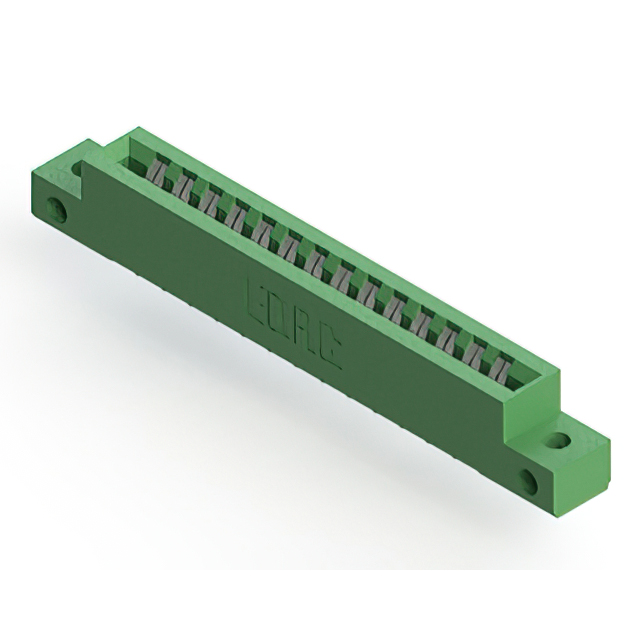

The EDAC Inc. 306-014-421-112 is a standard card edge connector from the 306 series, designed for dual-edge female applications. It features 14 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes tin plating on copper alloy contacts and is housed in green thermoplastic polyester insulation. It supports panel mount installation with vertical orientation and solder pin termination. The unit accommodates board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm) and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified card types
• Vertical panel mount design with solder pin termination
• Tin-plated copper alloy contacts for reliable conductivity
• Green thermoplastic polyester housing for durability

Edgeboard Connectors Applications

• Medical interconnect solutions such as ventilators
• Ambulance communication systems
• CPAP machine connections
• Industrial control panels

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or official manufacturer channels. Confirm that the specific ordering suffix matches the required 14-position dual-edge specification. Ensure compliance with RoHS3 standards if restricted substances are a concern. Cross-reference the datasheet drawing for precise mounting hole dimensions and mechanical tolerances before integration into final assemblies.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge female connector with 14 positions and 3.96 mm spacing is required. The vertical panel mount style suits applications needing direct board insertion. Tin plating offers cost-effective performance for general industrial use. Verify that the target PCB thickness falls within the 1.37 mm to 1.78 mm acceptance range for proper contact engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 306 Series, which provides standardized card edge connectors with 0.156-inch spacing. The series includes various row counts and termination options for diverse electronic interconnect needs. The 306-014-421-112 specifically addresses dual-edge requirements, distinguishing it from single-edge variants within the same family.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 306 series parts with matching 14-position dual-edge specifications. Verify identical 3.96 mm pitch and vertical panel mount characteristics. Ensure replacement units maintain the same tin-plated contact finish and compatible operating temperature range.
