306-014-421-158

Edgeboard Connectors Overview

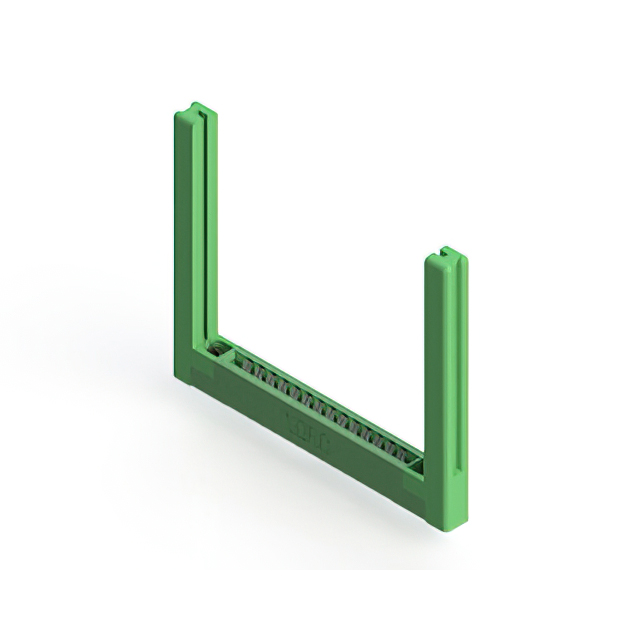

The EDAC Inc. 306-014-421-158 is a standard card edge connector from the 306 series, designed for dual-edge board applications. It features 28 positions with female contacts arranged in a non-specified dual configuration. The connector utilizes a 0.156-inch (3.96mm) contact pitch and accepts PCB thicknesses ranging from 0.054 to 0.070 inches. Constructed with copper alloy contacts featuring tin plating and a green thermoplastic polyester insulator, it supports panel mount installation via through-hole termination.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Through-hole termination for reliable panel mounting
• Tin-plated copper alloy contacts for corrosion resistance

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 306 Series Ordering Guide to ensure compatibility with required board thickness and termination style. Confirm RoHS compliance status and moisture sensitivity level requirements prior to integration into final assembly processes.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required for panel-mounted applications. Ensure the target printed circuit board thickness falls within the specified 0.054 to 0.070-inch range to guarantee proper mechanical engagement and electrical reliability during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 series of standard card edge connectors, which are widely used in industrial and commercial electronic systems. The series offers various position counts and configurations, providing versatile interconnection solutions for single or double-sided edge boards requiring robust mechanical stability.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 306 Series cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical contact count, pitch, and mounting specifications to preserve system compatibility.
