Edgeboard Connectors Overview

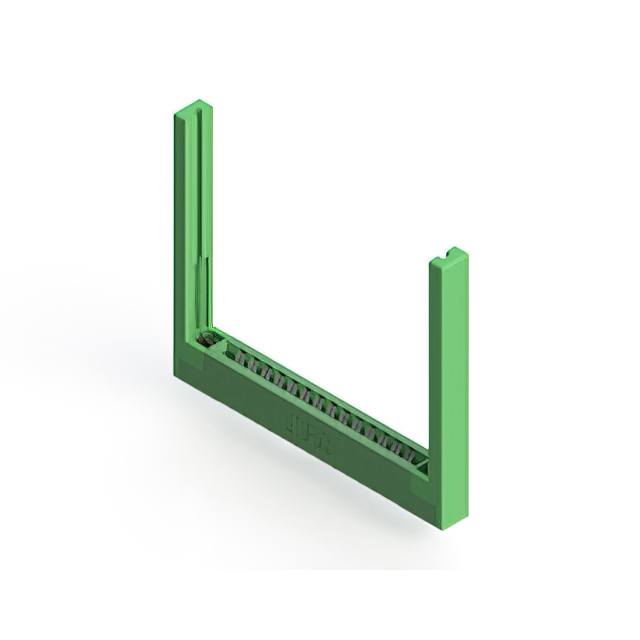

The EDAC Inc. 306-014-421-168 is a standard card edge connector receptacle from the 306 series. It features 28 positions arranged in a dual configuration with a 0.156-inch (3.96 mm) contact pitch. The component utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator, rated for 5 A current. Designed for panel mount installation at a vertical angle, it accepts board thicknesses between 0.054 and 0.070 inches (1.37 to 1.78 mm).

Edgeboard Connectors Feature Summary

• Dual female contact configuration for double-sided card edge connections.
• Gold-plated copper alloy contacts ensure reliable signal transmission.
• Vertical panel mount design with solder pin termination.
• Thermoplastic polyester insulation provides structural stability.

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact contact plating, insulation color, and mounting flange variations. Ensure the target PCB card thickness falls within the specified 1.37 mm to 1.78 mm range for proper mechanical engagement. Confirm RoHS compliance status through the latest product documentation before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 28-position connection is required with a 3.96 mm pitch. The vertical panel mount style suits applications needing direct board insertion without surface mounting. Verify that the operating temperature range of -40°C to 105°C meets environmental requirements. Ensure the housing material compatibility with the mating card substrate for long-term reliability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 306 Series, which offers various positioning options and termination styles. The series supports diverse industrial and commercial applications requiring robust card edge connectivity. The 306-014-421-168 specifically addresses needs for medium-density connections with high durability standards.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 306 series variants for alternative row counts or pitch sizes. Verify mechanical footprint compatibility if substituting with similar connectors from different manufacturers. Check electrical ratings and insulation materials to ensure equivalent performance characteristics.
